Pioneer 12,000 BTU 21.5 SEER Ceiling Concealed Ducted Mini-Split - RYB012GMFILDAD-25

Pioneer 12,000 BTU 21.5 SEER Ceiling Concealed Ducted Mini-Split - RYB012GMFILDAD-25

The Pioneer Ducted Concealed 12,000 BTU mini split systems offer climate control, including hidden mini split AC for multiple rooms and areas, utilizing a network of air ducts (existing or field designed) using a single set of equipment. The concealed duct mini split is ideal for use in specific climate zones with distinctive separations, such as a master suite, where the zone can be split up into sub zones (a bathroom, study, dressing room, etc.). In this setting, a single set of equipment will properly condition all areas of the entire zone based on the same comfort settings.

Features

• Cooling capacity: 12,000 BTU/H with 21.5 SEER efficiency
• Heating capacity: 12,000 BTU/H with 11.5 HSPF efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• Variable Speed DC Inverter Operation Mode
• Energy-Star Certified

• Front Desk Control. With a smart control board, Pioneer air conditioners can be turned on/off via long distance control signals.
• Wired Control. Compared with infrared remote controller, wired controller can be fixed on the wall and makes air conditioner control more convenient.
• Refrigerant Leakage Detect. Indoor unit shows error code "EC" and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage.
• Anti-cold Air Function. Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
• Low Ambient Cooling. With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The air conditioner can run cooling operation even when the outdoor ambient temperature is down to -15°F.
• Follow Me. Temperature sensor built in the remote controller will sense it’s surrounding temperature. The unit will adjust the room temperature more accurately to give you comfort.

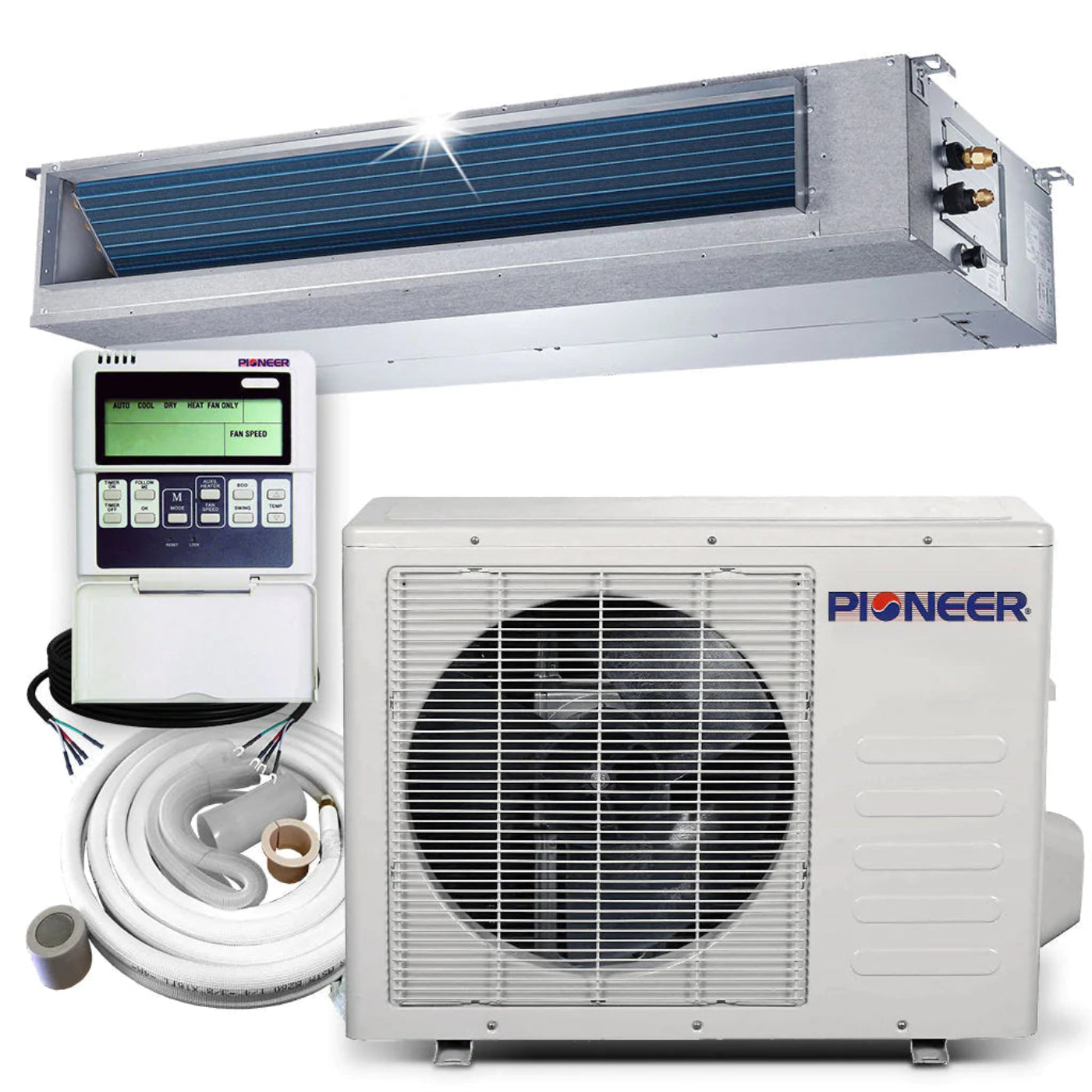

What's Included

• Indoor Unit
• Outdoor Unit
• Wire Remote Control

• R410A Pre-Charged Outdoor Unit
• 25 Ft. Installation Kit - 25 ft. copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.
• Flare Connection Leak Guard Sealer
• Manufacturer Warranty


What's Not Included and Required for Installation

• Electrical Requirements, such as Disconnect Box or Electrical Whip
• Vacuum Pump or Vacuum Set (alternatively, you can use the Pioneer Flush Kit)

Specifications

Manual

• Technical Brochure
• User Manual
• Installation Manual
• Service Manual
• Energy Guide

What Our Experts Think

• 21.5 SEER Energy Efficiency: Offers exceptional energy savings while providing powerful and consistent cooling and heating performance.
• 12,000 BTU Capacity: Perfect for medium-sized spaces, delivering reliable comfort throughout the year.
• Ceiling Concealed Ducted Design: Discreetly integrates into your ceiling for a sleek, unobtrusive look while distributing air evenly.
• Inverter Technology: Ensures precise temperature control, quieter operation, and greater energy efficiency.
• Quiet Operation: Engineered for minimal noise, providing a comfortable and peaceful environment.
• Flexible Installation: Ideal for homes or offices where a more subtle and integrated air conditioning solution is desired.
• Durable & Low Maintenance: Built to last with high-quality materials and designed for easy upkeep.

Q&A

Q: What is the cooling capacity of the Pioneer 12,000 BTU Ceiling Concealed Ducted mini split?
A: This system offers 12,000 BTU of cooling power, suitable for smaller to medium-sized spaces.

Q: What is the SEER rating of the Pioneer Ceiling Concealed Ducted mini split?
A: It boasts an excellent 21.5 SEER rating, ensuring high energy efficiency and lower electricity bills.

Q: What are the main features of the Pioneer 12,000 BTU Ceiling Concealed Ducted mini split?
A: It features a discreet ceiling-mounted unit, quiet operation, advanced filtration, and efficient cooling/heating via ducted air distribution.

Q: Does the Pioneer Ceiling Concealed Ducted mini split offer heating capabilities?
A: Yes, it is compatible with heat pump systems, providing both cooling and heating for year-round climate control.

Q: Is the Pioneer 12,000 BTU system easy to install?
A: Yes, the system includes a 25 ft. lineset for easier installation and can be discreetly mounted in the ceiling for a seamless, space-saving solution.

Maintenance Tips

• Clean or Replace Filters: Inspect and clean the filters every 2-4 weeks to maintain proper airflow. Replace if damaged or heavily worn.
• Inspect & Clean Coils: Clean both the evaporator and condenser coils at least once a year to ensure efficient heat transfer and cooling.
• Check Drain Line: Regularly check and clear the condensate drain line to prevent clogs and water leaks.
• Ensure Proper Airflow: Keep the air intake and discharge grilles free from obstructions to maintain airflow and system efficiency.
• Monitor Refrigerant Levels: Check refrigerant levels and inspect for leaks. If the system isn't cooling effectively, seek professional service.
• Schedule Professional Maintenance: Have a technician perform an annual inspection to check refrigerant levels, clean components, and ensure the overall system is working optimally.
