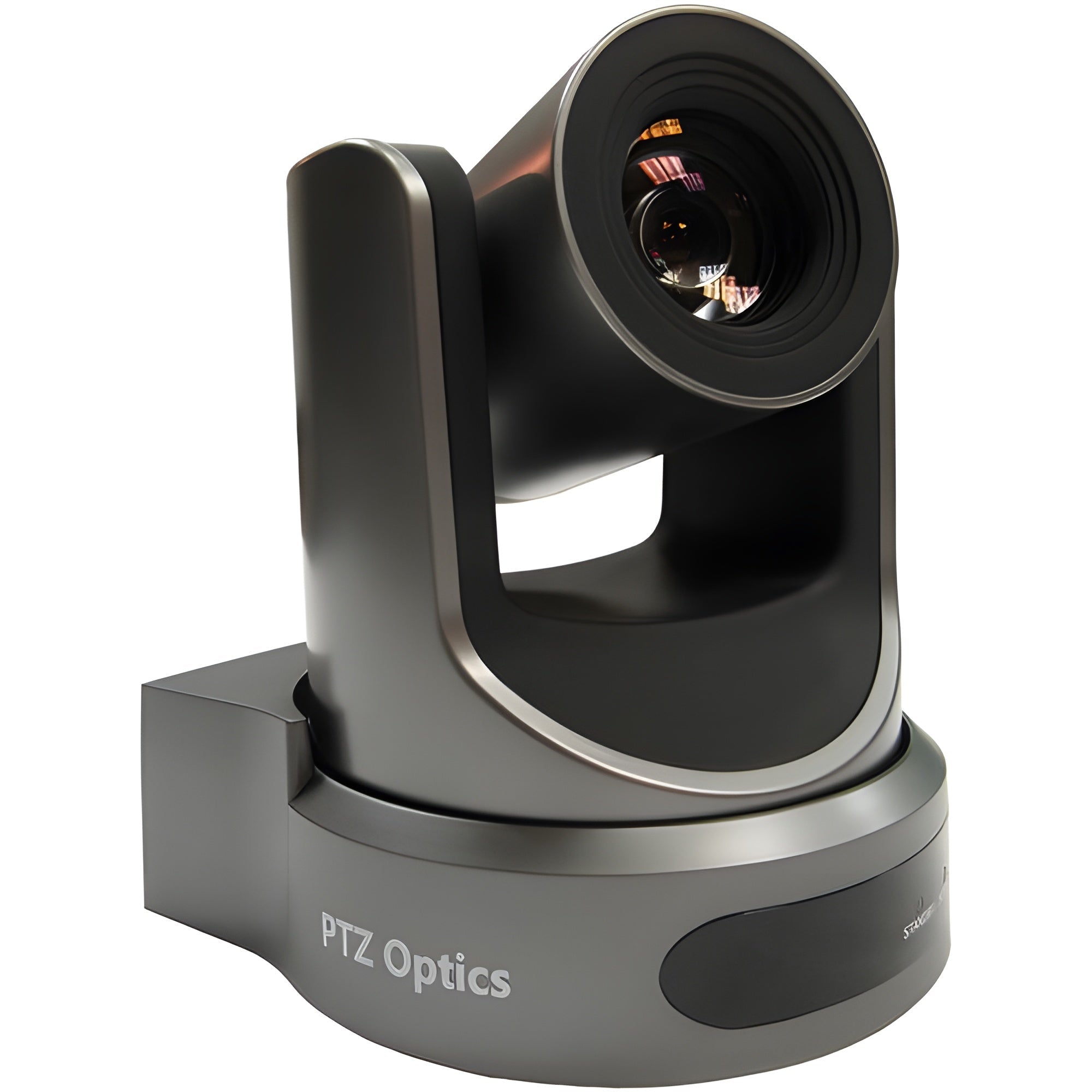

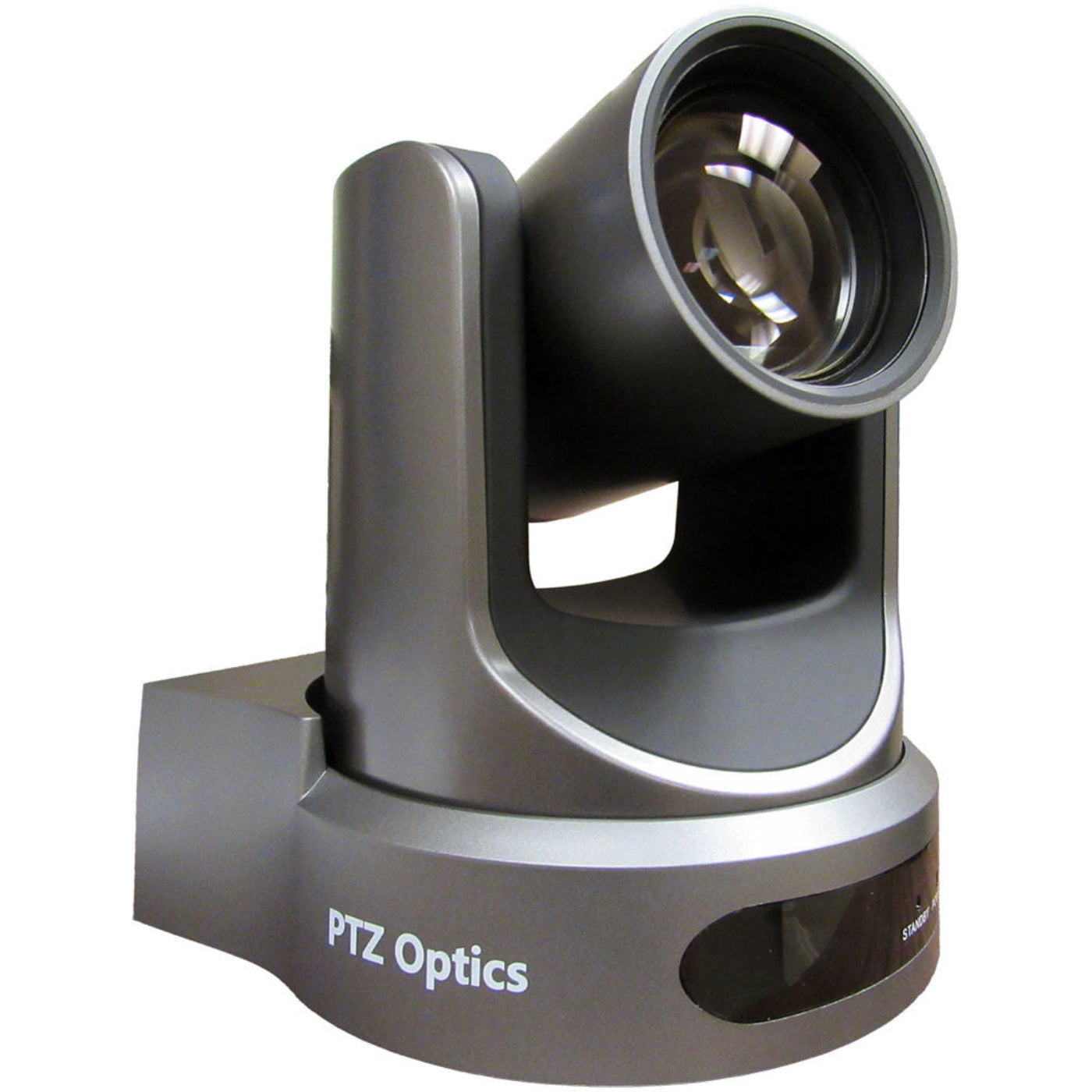

PTZOptics PT12X-SDI-GY-G2 Videoconferencing PTZ Camera - PT12XSDIGYG2

Features

• 3G-SDI output for connecting to professional switching equipment for broadcast conferencing

• 1080p HD video at up to 60/50 fps

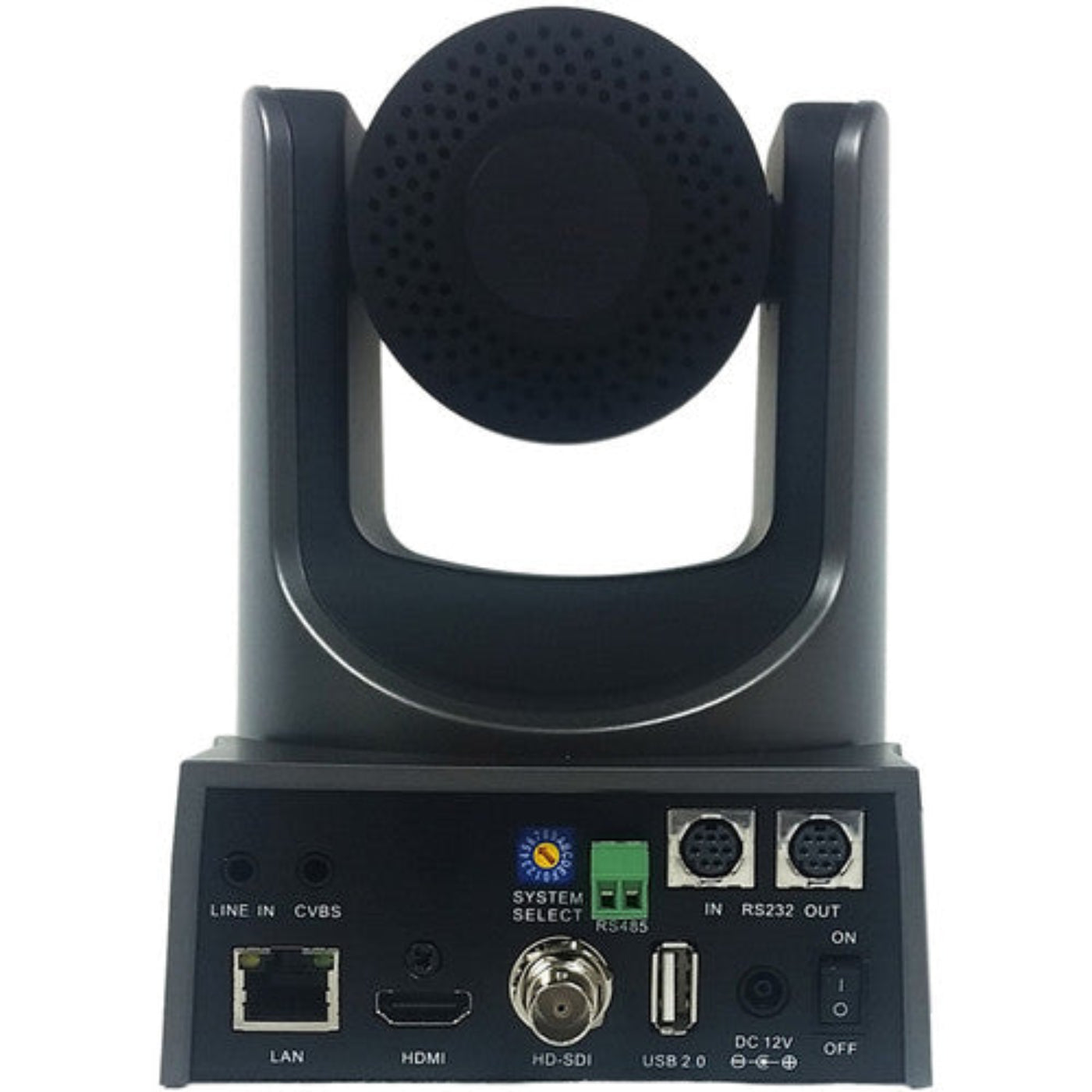

• LAN, HDMI, and composite outputs, RS-232 input/output, RS-485 port

• 3.5mm audio input for embedding audio into an HDMI signal or IP stream

• H.264 and H.265 HD/SD dual-stream, or MJPEG single stream via LAN port

• SDI, LAN, and HDMI ports are simultaneously live

• Open source customizable via HTML commands

• 3.5 - 42.3mm lens with 12x zoom range

• 1/2.7" 2.1MP CMOS sensor

• f/1.8 - f/2.8 lens aperture

• 0.5 lux minimum illumination at f/1.8

• Wide dynamic range

• 2D and 3D noise cancellation

• Control via LAN over a network, ONVIF over a network, and RS-232 via VISCA commands

• Control multiple cameras from any NewTek TriCaster, directly from the TriCaster software

• Set up to 64 presets (or up to 255 via RS-232), with a preset accuracy of 0.1°

• Use desktop-mounted or ceiling-mounted using an optional bracket

Specifications

What Our Experts Think

• 12x Optical Zoom: Capture clear, detailed footage from a distance with exceptional zoom capabilities for any videoconferencing setting.
• HD 1080p Resolution: Delivers high-definition video quality for sharp and vibrant images during meetings or presentations.
• SDI & IP Connectivity: Offers flexible connectivity options including SDI and IP for seamless integration into professional video setups.
• Pan, Tilt, and Zoom Control: Smooth and precise camera movements, ideal for dynamic conference environments.
• Multiple Presets: Easily store and recall up to 10 preset positions for efficient, one-touch operation.
• Quiet Operation: Designed for silent performance, ensuring minimal noise during videoconferencing.

Q&A

Q: What is the PTZOptics PT12X-SDI-GY-G2 Videoconferencing PTZ Camera?
A: The PTZOptics PT12X-SDI-GY-G2 is a professional PTZ camera designed for videoconferencing, offering 12x optical zoom and high-definition video quality, perfect for meetings and live streaming.

Q: What features does the PTZOptics PT12X-SDI-GY-G2 offer?
A: It features 12x optical zoom, SDI output, and smooth pan/tilt/zoom capabilities, providing clear video and flexible camera control for professional settings.

Q: Is the PTZOptics PT12X-SDI-GY-G2 suitable for large venues?
A: Yes, the 12x zoom and SDI output make it ideal for large conference rooms, auditoriums, and other professional environments where high-quality video is needed.

Q: How do I control the PTZOptics PT12X-SDI-GY-G2 camera?
A: The PTZOptics PT12X-SDI-GY-G2 can be controlled remotely via a joystick, IP interface, or third-party software, giving you full control over the camera’s movements and settings.

Maintenance Tips

• Regular Lens Cleaning – Use a microfiber cloth to clean the lens, removing dust and fingerprints to maintain clear video quality.
• Avoid Exposure to Dust & Humidity – Store the camera in a dry, dust-free area to prevent internal damage or fogging of the lens.
• Secure the Camera – Ensure the camera is securely mounted to avoid mechanical damage during movement or operation.
• Check SDI Connections – Inspect all SDI cables and connections regularly to ensure proper signal transmission and prevent malfunctions.
• Update Firmware – Keep the camera's firmware up-to-date to benefit from performance improvements and bug fixes.
• Power Off During Maintenance – Turn off the camera when cleaning or adjusting its setup to avoid electrical issues or damage.
• Protect from Overheating – Ensure proper ventilation around the camera to prevent overheating during long use sessions.
