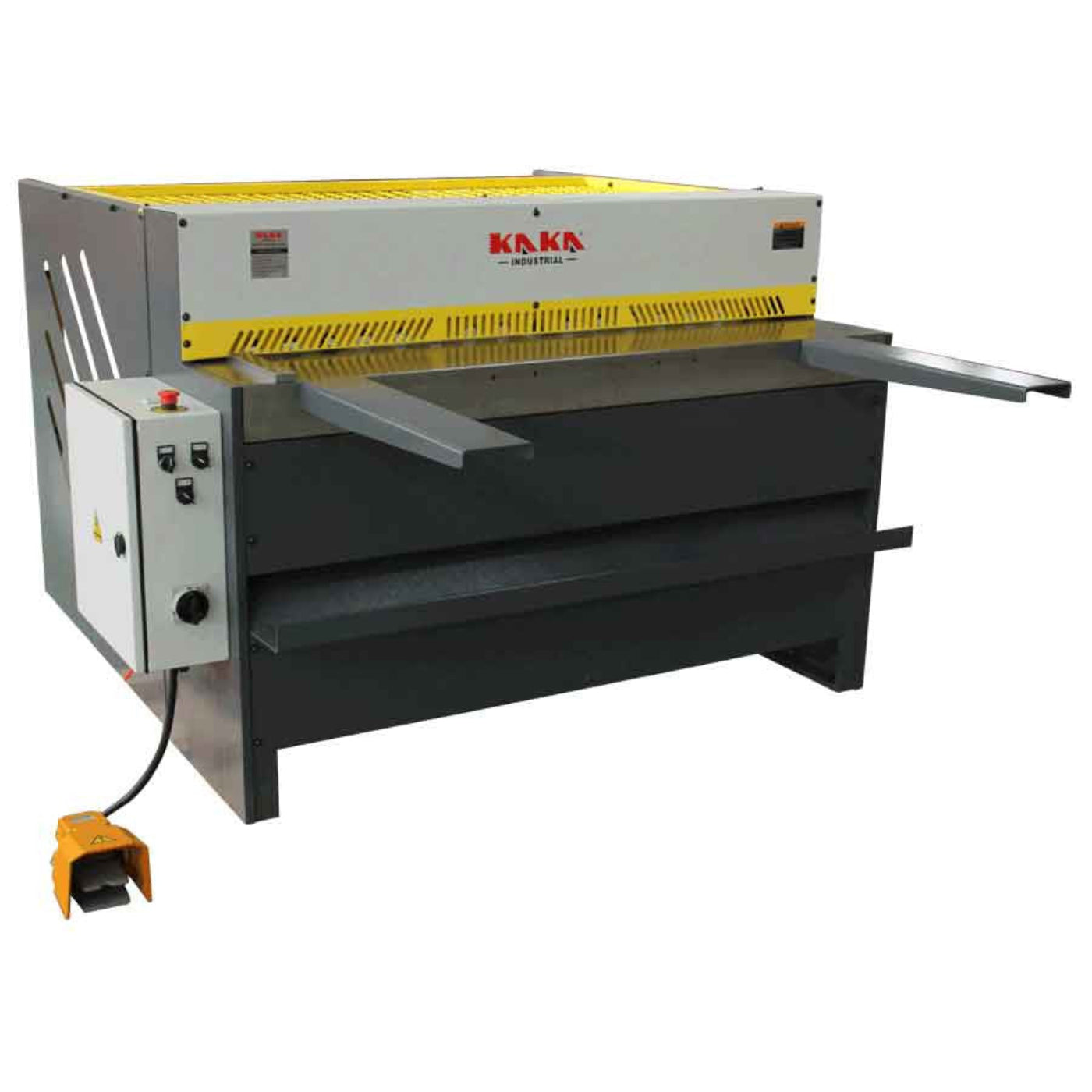

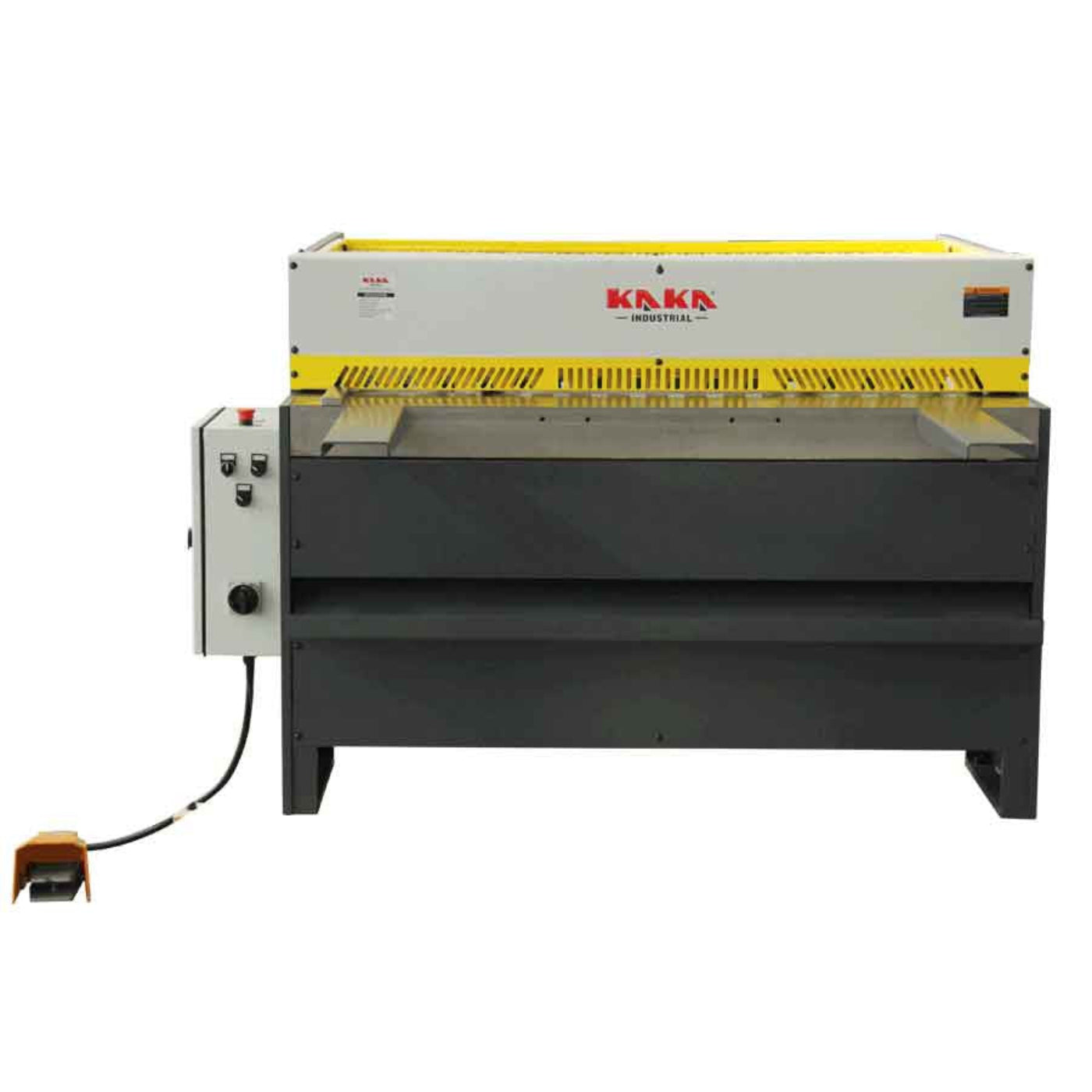

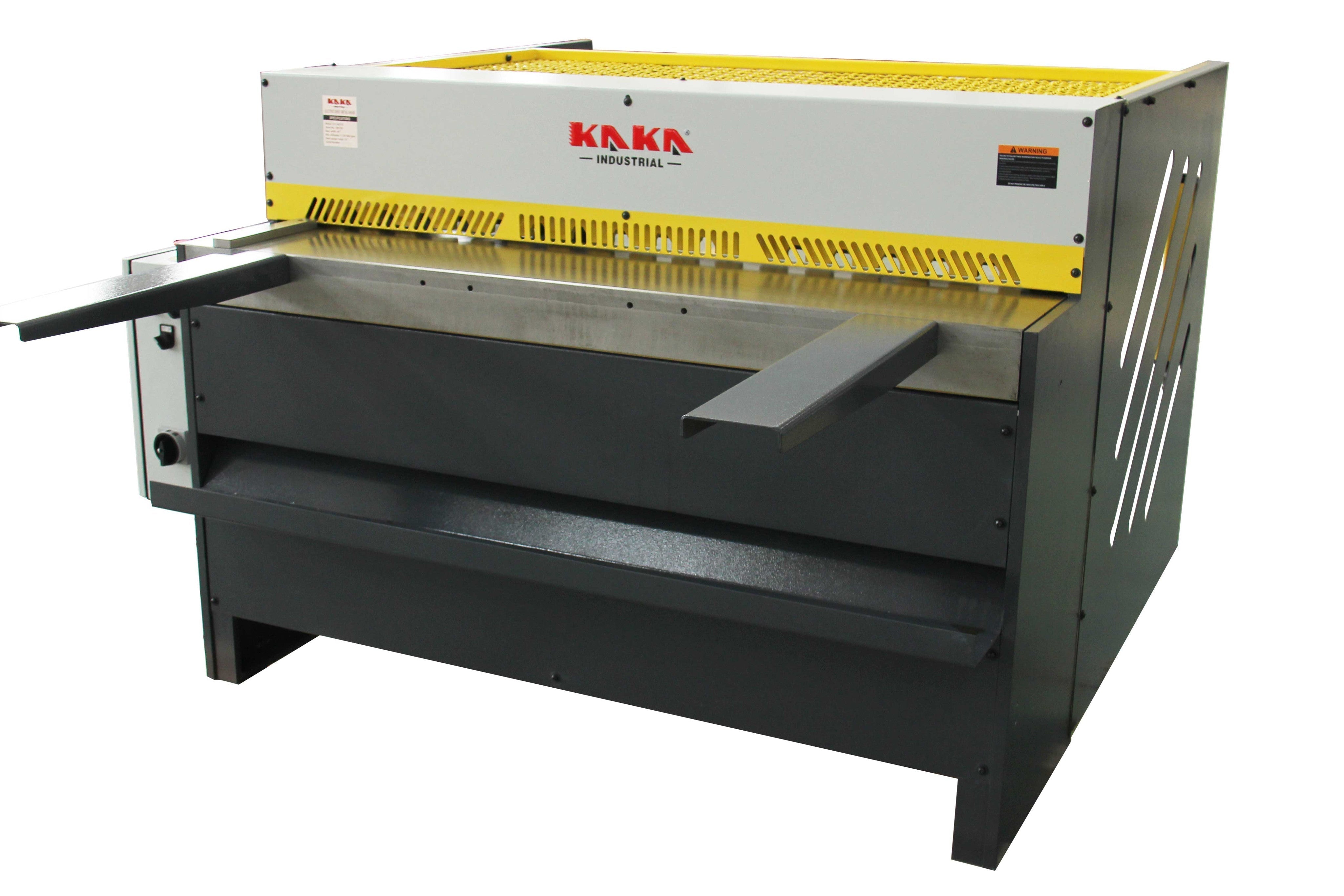

Kaka Industrial Q11-4811A Electric metal shearing machine with light curtain 220V-60HZ-3PH - 186108V220

Kaka Industrial Q11-4811A Electric metal shearing machine with light curtain 220V-60HZ-3PH - 186108V220

1、Runs on 220V-3PH power, 4.0 kW powerful motor

2、Max. cutting 48" width, and 11Ga at full width cutting

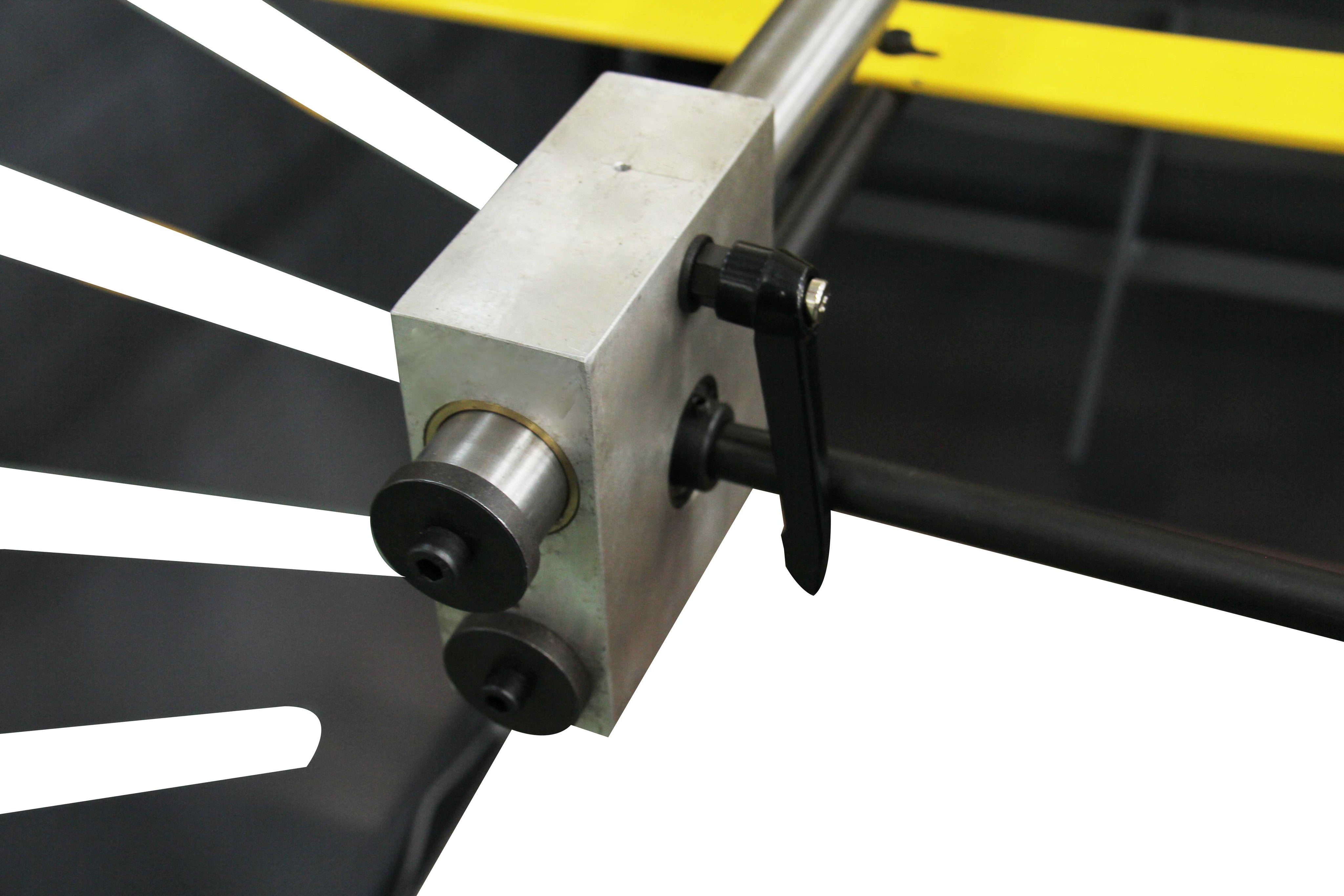

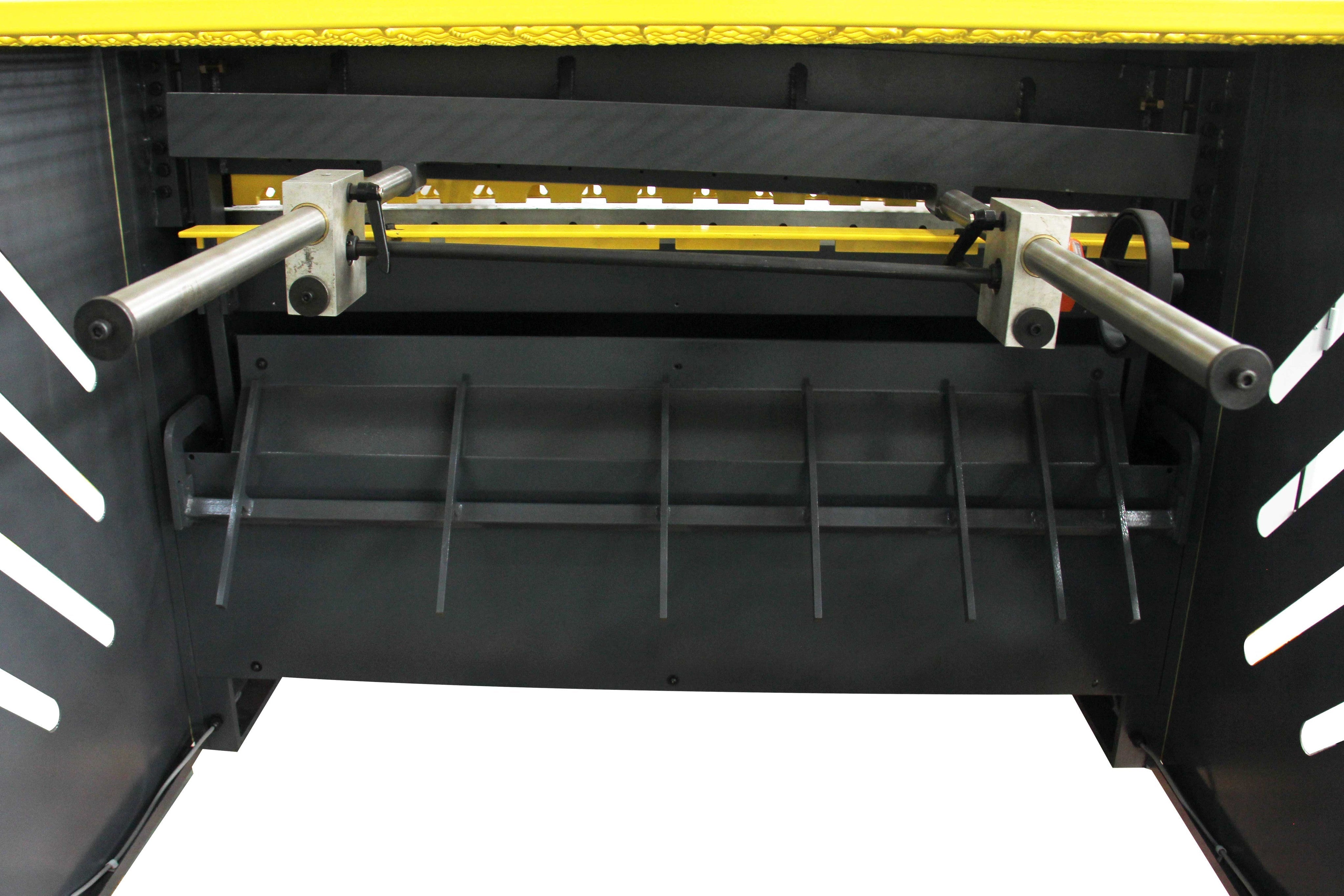

3、Manual adjustable 25" back gauge

4、Two shearing edge to get long cutting life

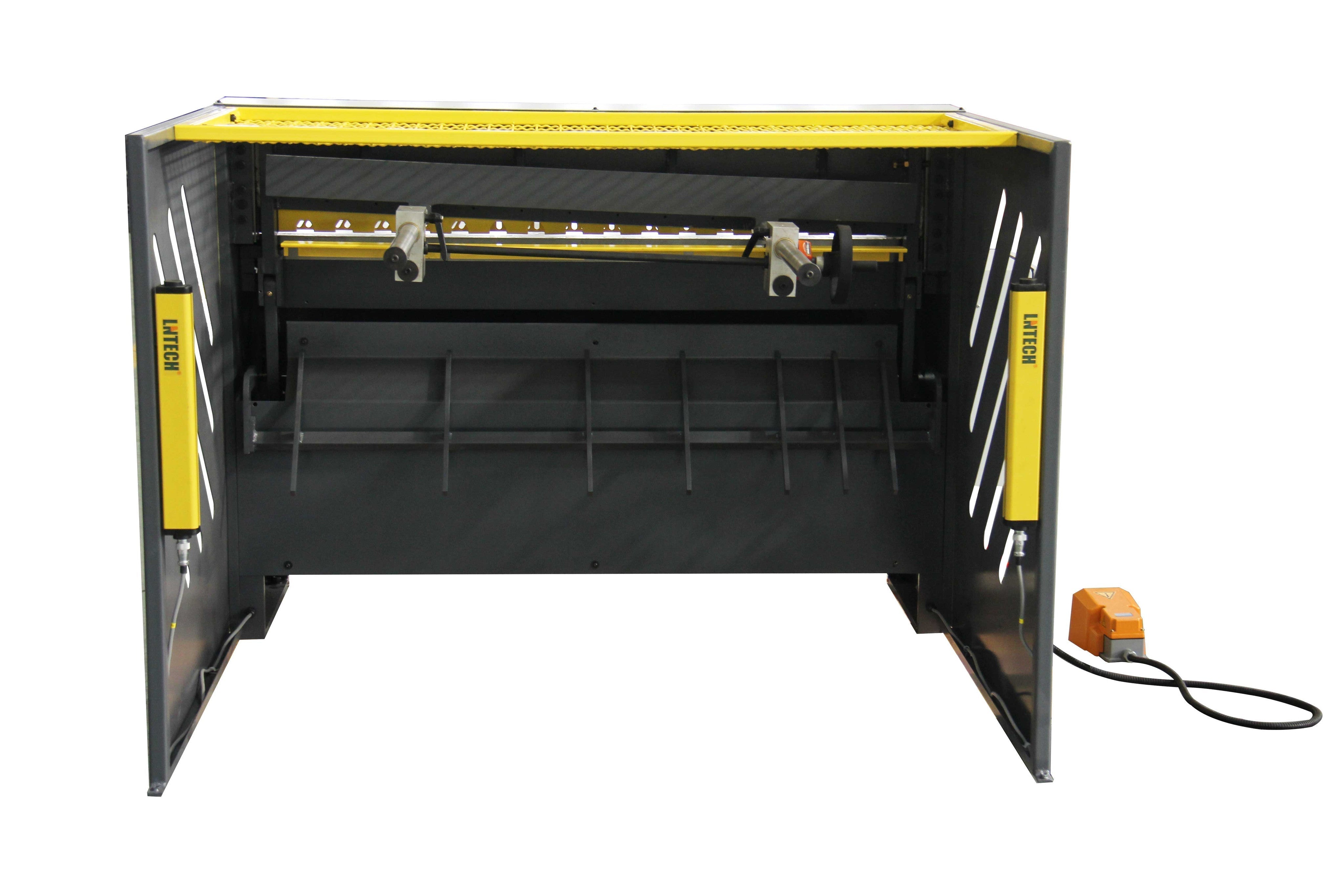

5、Back side with pneumatic steel catcher

6、Cutting width smaller than 4.3" could slide from the front sheet pallet

7、Hold-down to fixed the plate well for precise cutting

8、2 modes on the operator console

9、Inch mode: Jog the control and ease the blade down to the material.

10、Single mode: Make one cut cycle per foot pedal push.

Specifications

Video

What Our Experts Think

• Electric Powered – Efficient 220V, 3-phase motor for consistent, powerful cutting performance.

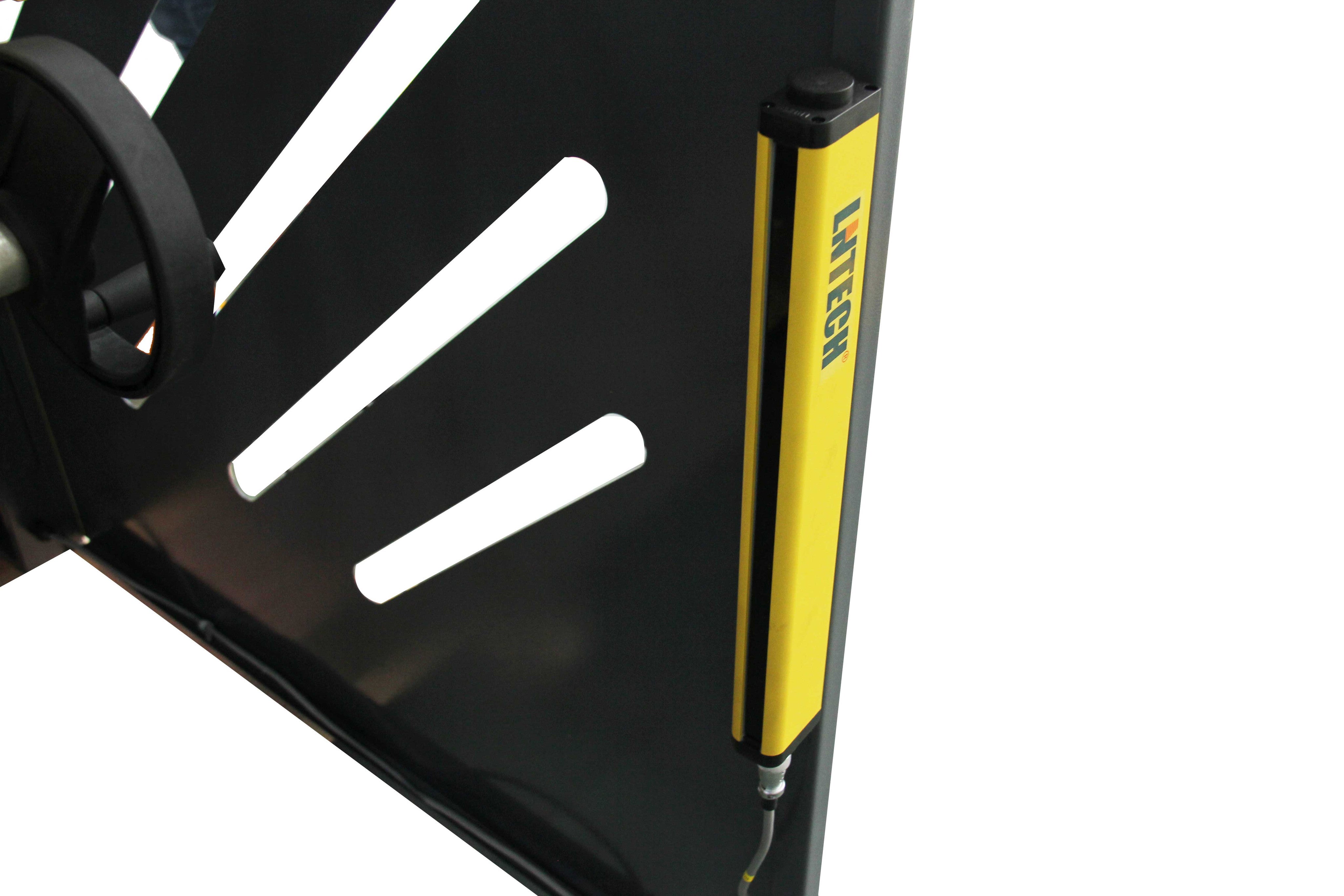

• Light Curtain Safety Feature – Enhances operator safety by detecting obstructions and preventing accidents.
• Precision Shearing – Offers clean, accurate cuts on a wide range of metal sheets.
• Heavy-Duty Construction – Built for long-term industrial use with high durability.
• Versatile Operation – Suitable for various sheet metal cutting tasks in fabrication shops.

Q&A

Q: What type of metal can this shearing machine cut?
A: It is designed for cutting sheet metal, including mild steel, stainless steel, and aluminum.

Q: What is the power supply requirement for this machine?
A: The Q11-4811A operates on 220V, 60Hz, 3-phase power, making it suitable for industrial settings.

Q: Does it feature any safety features?
A: Yes, it includes a light curtain safety feature to ensure operator protection during operation.

Q: What is the cutting capacity of the machine?
A: It can cut metal sheets up to a thickness of 1/8-inch (approximately 4mm), depending on the material.

Q: Is the machine adjustable for different cutting sizes?
A: Yes, it allows for precise adjustments to accommodate various sheet metal sizes and thicknesses.

Maintenance Tips

• Lubricate Moving Parts – Regularly oil the blades, gears, and pivot points to ensure smooth operation.
• Check Blade Alignment – Ensure the shearing blades are properly aligned for clean cuts and minimal wear.
• Inspect for Wear & Tear – Check the cutting edges for signs of dullness or damage and replace as needed.
• Keep the Machine Clean – Remove metal debris and dust after each use to maintain performance.
• Test Safety Features – Ensure the light curtain and emergency stops are functioning properly for operator safety.
• Tighten Bolts & Fasteners – Secure all components to prevent misalignment and vibrations.
• Inspect Electrical Connections – Regularly check wiring and components to prevent electrical issues.
