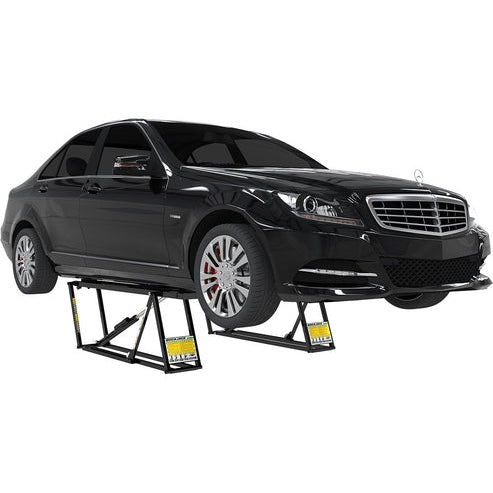

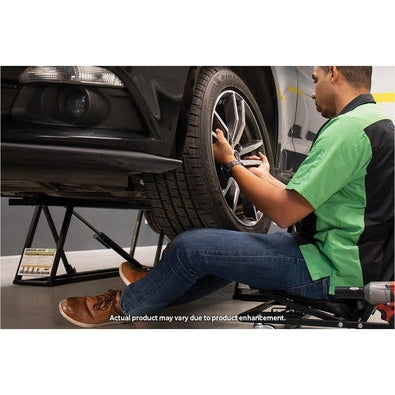

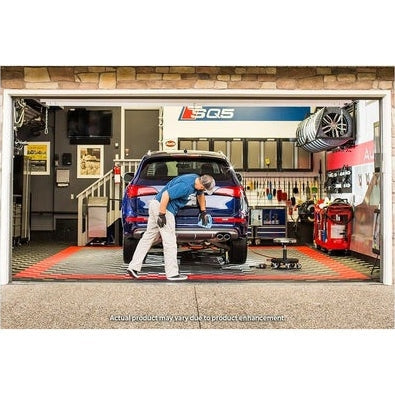

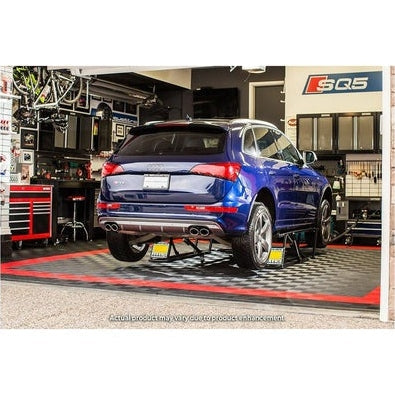

Complete your garage or workspace with this Portable Car Lift 5,000 lbs. Capacity. It can hold vehicles up to 5,000 lbs. The smart design produces 24 in. of lifting height, 3 in. lowered height, 70 in. overall length and 11 in. overall width. This lift allows you to easily perform repairs on the underside of vehicles.

Features

• Plugs into 110V AC wall outlet power to operate

• Remote pendant control features a 13 ft. cord

• Dual locking positions mid level and full rise

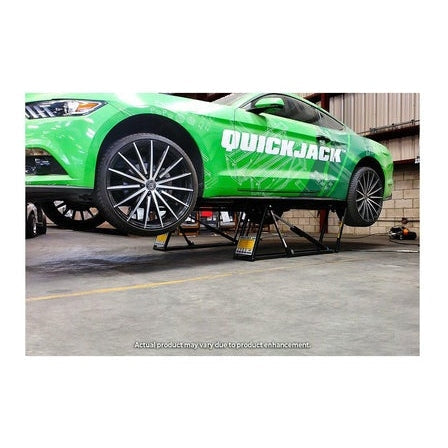

• Quickjack is designed to lift an entire vehicle with both frames by engaging the OEM recommended lifting points

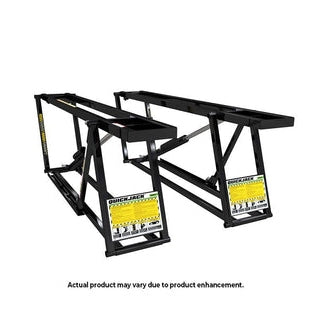

• Strong 14-gauge welded steel frames

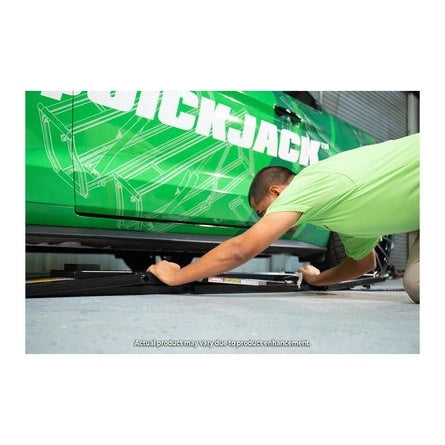

• Low-profile jack frames fit under most race cars

• Recommended that you always use Quickjack on a flat surface, anything greater than a 3 degrees slope is not considered safe

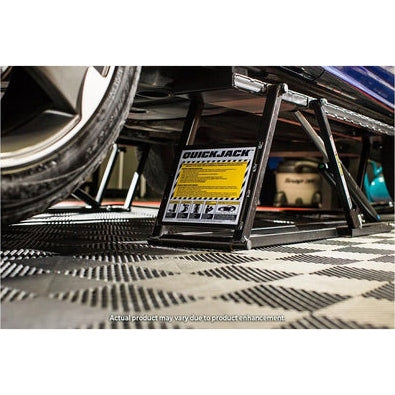

• Long as Quickjack's mechanical safety locks are engaged, vehicles can be raised and stored indefinitely

• Extended, cantilevered rubber block trays provide increased rubber block reach

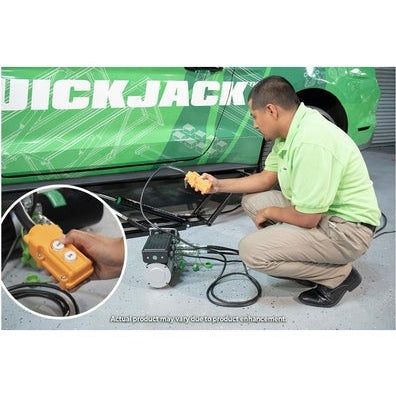

• Portable power unit features a remote push-button control for simple operation

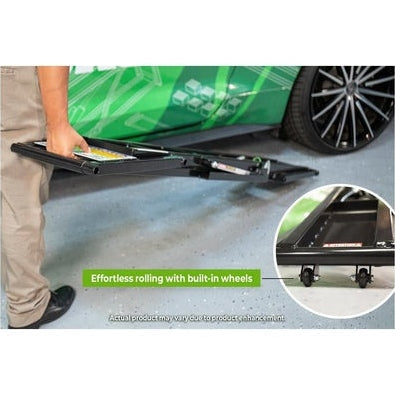

• Steel mounted urethane wheels provide effortless rolling of jack frames on floor

• Power unit features a built-in hydraulic flow divider for precise equalized lifting

• Convenient handles allow for easy positioning of the jack frames

• Integrated power-assist canisters increase the lowering speed

• Hydraulic cylinders feature integrated velocity-fuse safety valves

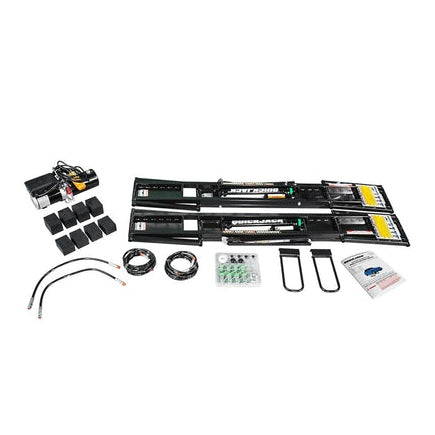

• Includes an 8-piece set of adjustable and stackable rubber lift blocks to support cars at precise locations for increased stability and safety

• Detailed installation, maintenance and safety instructions accompany each Quickjack system

Specifications

Lifting capacity
5,000 lbs. (2,268 kg)

Lowered height
A - Frame only: 3" (76 mm)
B - With 2" block: 3.5" (89 mm)

Lifting height
D - With 2" block: 21" (521 mm)
E - With 3" block: 22" (546 mm)
F - Max. height: 24" (616 mm)
G - With adapters: 24" (597 mm)
H - With adapters + pin: 26.75" (673 mm)

Lift point spread
I - Maximum: 60" (1,524 mm)
J - Minimum: 37" (940 mm)

Frame dimensions (ea.)
K - Width: 11" (278 mm)
L - Length: 70" (1,778 mm)
A - Height (lowered): 3" (76 mm)
- Weight: 78 lbs. (35 kg)

Other specs
- Time to full rise: 30 seconds
- Power unit weight: 15 lbs. (7 kg)
