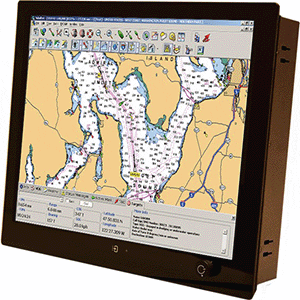

Elevate your marine navigation system with the Seatronx 15" Sunlight Readable Touch Screen Display. Designed for modern glass bridge helms, this rugged display offers unparalleled durability and clarity, making it the ideal choice for integration with GARMIN’s GPSMAP 8700 processor.
The Seatronx 15" display combines cutting-edge technology with robust construction, ensuring high performance in any marine condition. Whether you’re navigating bright sunlight or navigating in low light, this display provides consistent, high-quality visibility.
Mounting Options: Compatible with both Panel Mount and VESA Mount for flexible installation.
Touch Technology: Equipped with Projected Capacitive Touch for a responsive and intuitive interface.
Optical Bonding: Enhances durability and readability in bright and challenging lighting conditions.
Remote Control: Optional remote control available for ease of operation.
Sealing: IP68 rating with Potentiometer ensures maximum protection against dust and water.
| Diagonal (Active Area): | 15 inches |
|---|---|
| Native Resolution: | 1024 x 768 pixels |
| Contrast Ratio: | 700:1 |
| Brightness: | 1800 nits |
| Viewing Angles (L/R): | 80° |
| Viewing Angles (U/D): | 60° / 80° |
| Backlight Dimming: | Adjustable from 0 to max |
| Backlight Lifetime: | 50,000 hours |
| Input Terminals: | HDMI, DVI, VGA, Composite (HDCP supported) |
| Power Source: | 9-34V DC |
| Power Consumption: | 2.8 Amps @ 24V DC |
| Inlet Plug: | DC Power - Screw Terminal |
| Operating Temperature: | -30°C to 85°C |
| Storage Temperature: | -30°C to 85°C |
| Overall Dimensions (W x H x D): | 14.295" x 12.02" x 2.28" |
| Cutout Dimensions (W x H x D): | 13.58" x 11.30" x 2.40" |
Order shipment preparation takes 3 days. Once shipped orders usually take 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our shipping policy here.
