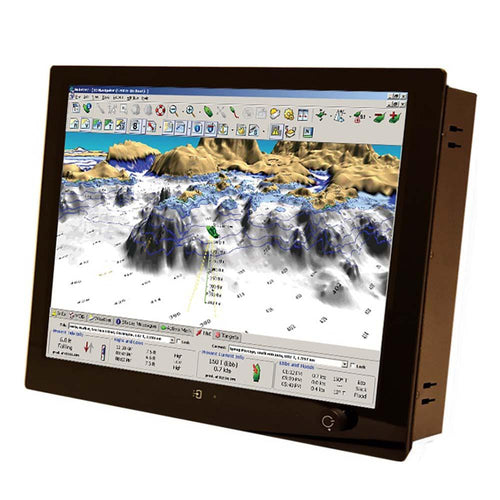

Upgrade your pilothouse with the Seatronx 21.5" Glass Bridge Touch Screen Display, the ideal solution for those seeking a blend of rugged durability and elegant design. Engineered for high-performance marine environments, this display offers exceptional clarity and functionality, making it a top choice for modern glass bridge helms.
Designed to excel in both bright and dim conditions, this display features up to 300 nits of low-power LED backlighting, ensuring clear visibility in various lighting conditions. The display's complete dimming capability allows for comfortable nighttime use, controlled directly from the front panel.
Mounting Options: Versatile Panel Mount and VESA Mount for easy installation.
Touch Technology: Projected Capacitive Touch for precise and responsive interaction.
Optical Bonding: Enhances durability and visibility by reducing glare and improving contrast.
Remote Control: Optional remote control for added convenience.
Sealing: IP68 rating with a potentiometer for protection against dust and water ingress.
| Diagonal (Active Area): | 21.5 inches |
|---|---|
| Native Resolution: | 1920 x 1080 pixels (Full HD) |
| Contrast Ratio: | 5000:1 |
| Brightness: | 300 nits |
| Viewing Angles (L/R) | 89° |
| Viewing Angles (U/D): | 89° |
| Backlight Dimming: | Adjustable from 0 to maximum |
| Backlight Lifetime: | 50,000 hours |
| Inputs: | HDMI, DVI, VGA, Composite |
| Power Source: | 9-34V DC |
| Power Consumption: | 3.5 Amps @ 24VDC |
| Inlet Plug: | Screw Terminal |
| Operating Temperature: | 0°C to 50°C |
| Storage Temperature: | -20°C to 60°C |
| Overall Dimensions (W x H x D): | 22.95" x 13.59" x 2.28" |
| Cutout Dimensions (W x H x D): | 20.47" x 12.88" x 2.40" |
Order shipment preparation takes 3 days. Once shipped orders usually take 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our shipping policy here.
