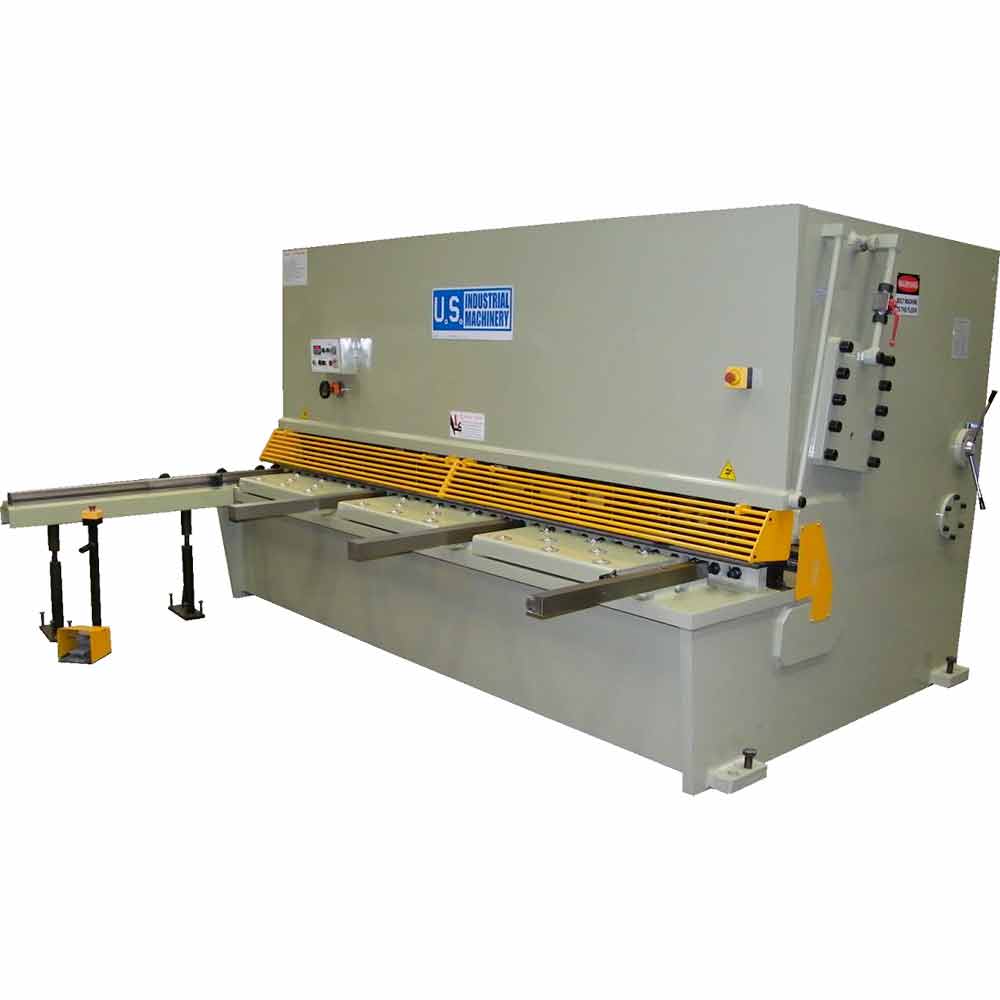

U.S Industrial Machinery 10’ x 3/4” Hydraulic Shear - US10750

U.S. Industrial Machinery can accommodate all kinds of custom machine requests

Our CNC-controlled hydraulic shears automate many of the features available in the manual machines for increased precision and control. What’s great about this equipment is it can also be controlled manually when the situation calls for it. These versatile machines offer exceptional speed and accuracy and the ability to design and save your own cutting programs. Each program accepts 20 steps, and users can store up to 200 programs at one time. Our manual control hydraulic shears offer easy configuration to cut materials of varying thickness with stroke length adjustments as well.

Features

• Setting back-gauge position

• Setting stroke length and blade gap

• Custom cutting program storage

• Motorized front-operated power back-gauge with digital and mechanical readouts

• Fine adjustment handwheel

• Back-gauge adjustment range from ½” to 36”

• A swing-up mechanism for cut depths larger than 36″

Specifications

• Sheet Size: 126”

• Shearing Capacity: 3/4” Mild Steel @ 65,000 PSI UTS 3/8” Stainless Steel @ 95,000 PSI UTS (Must consider option for Cr12MoV blades.)

• Shear Angle: 1 Degree 30’

• No Load Strokes: 5

• Throat Depth: 5.9”

• Adjustment Range of Back Gauge: 0.75” - 36”

• Hydraulic Oil Capacity: 137 Gal.

• Main Motor: 40 HP, 220 or 440 Volts, 3 phase (Please specify your voltage requirement)

• Net Weight: 39,683 lbs.

• Dimensions (L x W x H): 161” x 90” x 88”

Package includes

• Front operated power Backgauge with digital readout, 36” travel

• Squaring Arm – 39”

• Support Arms, Ball Transfer Tables w/hand slots between tables

• Quick blade gap adjustment

• Material drop/support chute *
