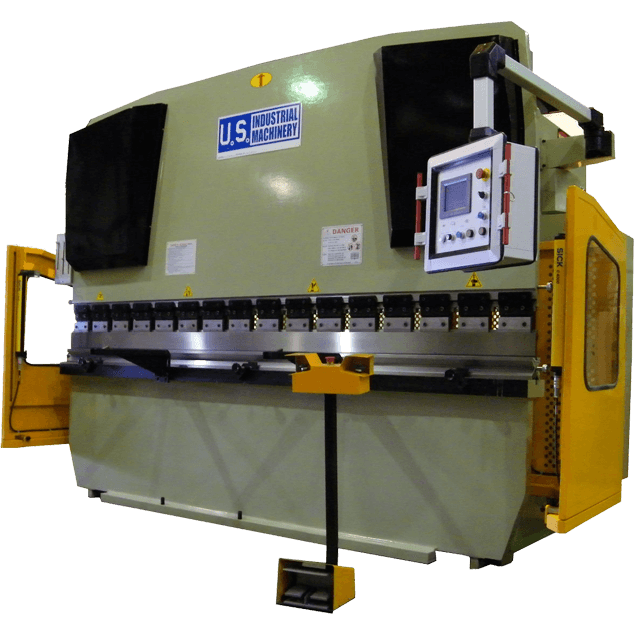

U.S. Industrial Machinery Hydraulic Press Brake, 22 Ton X 4’, with Simple CNC USHB22-4SCNC-1
80
Peoples are also watching.
Brand:
U.S Industrial
SKU:
USHB22-4SCNC-1
- $21,300.99
$25,058.99- $21,300.99
- Unit price
- per
authorized dealer, shop your favorite brand.
Expert Support,
Dial +1 (888) 851-3898
Limited Supply,
grab it before it's gone.
Lowest prices,
As low as possible.
All Item are brand New,
Never used.
Brand: U.S Industrial
U.S. Industrial Machinery Hydraulic Press Brake, 22 Ton X 4’, with Simple CNC USHB22-4SCNC-1
Brand: U.S Industrial
U.S. Industrial Machinery Hydraulic Press Brake, 22 Ton X 4’, with Simple CNC USHB22-4SCNC-1
Popular Add-Ons
Add-Ons Bundle
$200.00
$70.00
$100.00
$30.00
Bundle Offer
$300.00
$100.00
Recently Viewed Products
Brand:
ePower Go
Damage Protection
If your order is damaged during shipping, refuse it and contact us for solutions
- $100.00
- $100.00
- Unit price
- per
Brand:
ePower Go
Loss Protection
If your order is lost during shipping, contact us for a replacement
- $30.00
- $30.00
- Unit price
- per
Brand:
ePower Go
Theft Protection
- $20.00
- $20.00
- Unit price
- per
Brand:
Senville
Senville AURA 18000 BTU Mini Split Concealed Duct Air Conditioner and Heat Pump - SENA/18HF/ID
Senville AURA 18000 BTU Mini Split Concealed Duct Air Conditioner and Heat Pump - SENA/18HF/ID Looking for the best concealed duct mini split air conditioner heat pump that will offer a versatile and affordable solution to cooling and heating your tiny home? Look no...
- From $1,339.99
$1,489.99- From $1,339.99
- Unit price
- per
DJI Matrice 350 TB65 Intelligent Flight Battery - CP.EN.00000457.01 The TB65 Intelligent Flight Battery adopts high-performance, high-energy cells and can be charged up to 400 cycles, reducing the cost for a single flight. Additionally, it has enhanced heat dissipation performance and an auto-heating system. Features...
- $658.99
$700.00- $658.99
- Unit price
- per
ParfactWorks 1000W LED Grow Light - ZE1000 Cultivate thriving indoor plants with the ParfactWorks ZE1000, a powerhouse LED grow light designed to deliver exceptional results. This industry-leading fixture boasts a massive 1000 watts of power, drawing only a fraction of the energy compared to...
- $811.99
$954.99- $811.99
- Unit price
- per
Luxury Spas- Studio Series Oscar 6 Person Cloud Gray WS-007 offers high-quality relaxation. The Oscar 6-person round home spa has a luxurious cloud gray interior and offers spacious and ergonomic seating, perfect for relaxing and socializing with loved ones. Designed with gatherings in mind,...
- $6,549.99
- $6,549.99
- Unit price
- per
Cummins RS13A - 13kW Quiet Connect™ Series Home Standby Generator The Cummins Quiet Connect Series 13-18kW Air-Cooled Standby Generator is the perfect power backup during an outage. It is powered by a 999 cc engine which runs from 13 to 20 kilowatts both on...
- $3,830.00
$3,999.00- $3,830.00
- Unit price
- per
Our CNC control hydraulic press brakes offer users the ability to tackle any project with precision, speed, and volume.
These machines can handle the most demanding jobs with impeccable details. The capability to use a removable USB drive means that additional program storage is virtually limitless.
Features
-
6” LCD touchscreen to control the bend angle and back-gauge position
-
10 bends per program or cross-section
-
Up to 20 punch library and up to 50 die library
-
Auto bend sequence
-
Auto back-gauge retract
-
Spread length
-
Interference bend chart
-
Calculated bend allowance
-
Programmable ram dwell
Specifications
| Working Pressure | 22 Tons |
|---|---|
| Length of Working Table | 51.9” |
| Distance Between Housings | 40.1” |
| Throat Depth | 7.8” |
| Stroke Adjustment of Ram | 2.75” |
| Ram Travel | 3.14” |
| Open Height | 9.64” |
| Rapid Ram Travel Speed | 2.4”/sec. |
| Rapid Ram Retreat Speed | 2.0”/sec. |
| Backgauge Travel | 24” |
| Pressing Speed | Dependent on Tool Load |
| Motor Horsepower | 7.5 HP |
| Hydraulic Oil Capacity | 21 Gal. 220 or 440 Volts, 3 ph. |
| Length | 73” |
| Net Weight | 4,400 lbs. |
| Width | 56” |
| Height | 77” |
Package includes
-
SIMPLE CNC
-
SICK DETEC 2 LIGHT CURTAIN
