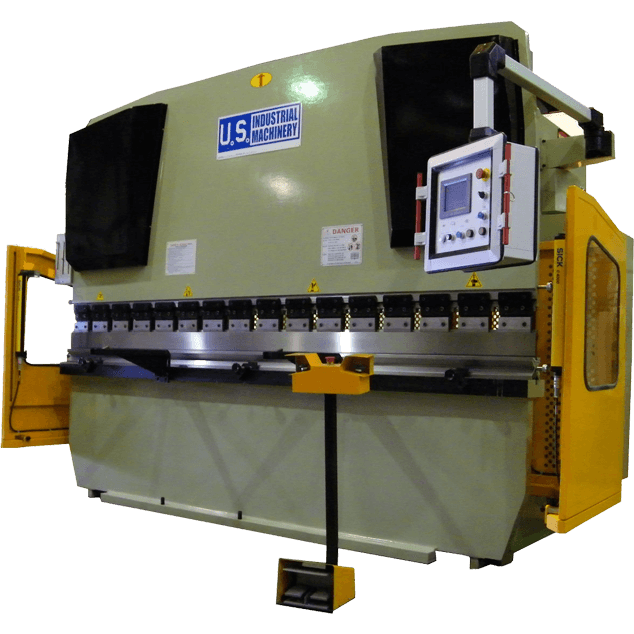

U.S. Industrial Machinery Hydraulic Press Brake, 22 Ton X 4’, with Simple CNC USHB22-4SCNC-1

Our CNC control hydraulic press brakes offer users the ability to tackle any project with precision, speed, and volume.

These machines can handle the most demanding jobs with impeccable details. The capability to use a removable USB drive means that additional program storage is virtually limitless.

Features

• 6” LCD touchscreen to control the bend angle and back-gauge position

• 10 bends per program or cross-section

• Up to 20 punch library and up to 50 die library

• Auto bend sequence

• Auto back-gauge retract

• Spread length

• Interference bend chart

• Calculated bend allowance

• Programmable ram dwell

Specifications

• Working Pressure: 22 Tons

• Length of Working Table: 51.9”

• Distance Between Housings: 40.1”

• Throat Depth: 7.8”

• Stroke Adjustment of Ram: 2.75”

• Ram Travel: 3.14”

• Open Height: 9.64”

• Rapid Ram Travel Speed: 2.4”/sec.

• Rapid Ram Retreat Speed: 2.0”/sec.

• Backgauge Travel: 24”

• Pressing Speed: Dependent on Tool Load

• Motor Horsepower: 7.5 HP

• Hydraulic Oil Capacity: 21 Gal. 220 or 440 Volts, 3 ph.

• Length: 73”

• Net Weight: 4,400 lbs.

• Width: 56”

• Height: 77”

Package Includes

• Simple CNC

• SICK DETEC 2 Light Curtain
