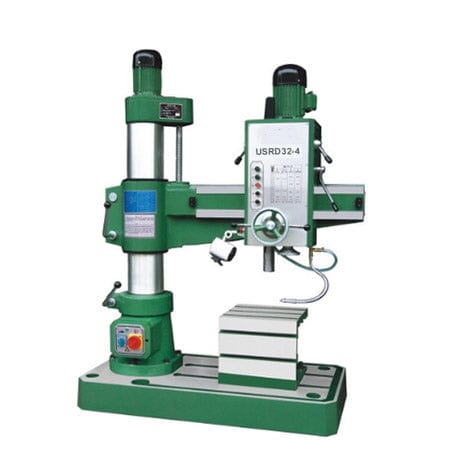

U.S Industrial Machinery 32” Radial Arm Drill Press- USRD32-4

U.S Industrial Machinery 32” Radial Arm Drill Press- USRD32-4

SPECIFICATION

• 1.5” Drilling Capacity

• 12.6” to 32” Minimum and Maximum spindle to column • 7.87” Diameter of column • Morse Taper 4 Spindle

• 9.4” of Spindle Travel

• 75 to 1220 RPM Spindle speeds (6 speed gear driven)

• .0039” to .010” spindle feeds in Inches Per Revolution (3 feeds)

• 4.72” to 33.85” Minimum and Maximum distance spindle to base

• 15.75” x 15.75” x 13.75” Box Table dimensions

• 53.9” x 27.5” x 6.3” Base dimensions

• 55.4” x 28.3” x 74.2” Overall dimensions

• 2 HP main spindle drive (208-240 OR 440-480 Volts, 3 phase)

• 3135/2640 Gross/Net weight lbs.

Package includes

• Morse Taper 4 Spindle

• Two side box work table, t-slotted

• T-slotted base

• Flood Coolant System

• Power Arm Elevation

• Manual Arm Clamp

• High Precision, Low Noise Ground Gears

• 9.4” + drilling depth
