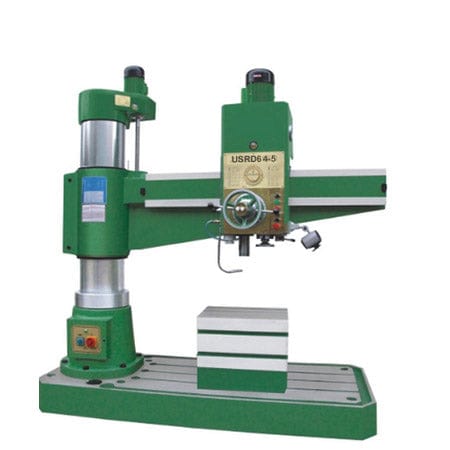

U.S Industrial Machinery 63” Radial Arm Drill Press- USRD64-5

U.S Industrial Machinery 63” Radial Arm Drill Press- USRD64-5

SPECIFICATION

• 2” Drilling Capacity

• 13.8” to 63” Minimum and Maximum spindle to column

• 13.8” Diameter of column

• Morse Taper 5 Spindle

• 12.4” of Spindle Travel

• 30 to 2400 RPM Spindle speeds (16 speed gear driven)

• .0016 to .126 spindle feeds in Inches Per Revolution (16 feeds)

• 12.6” to 48” Minimum and Maximum distance spindle to base

• 24.8” x 19.7” x 19.7” Box Table dimensions

• 94.5” x 39.3” x 7.9” Base dimensions

• 98.4” x 41.7” x 104” Overall dimensions

• 5.4 HP main spindle drive (208-240 OR 440-480 Volts, 3 phase)

• 8580/7700 Gross/Net weight lbs.

Package Includes

• Morse Taper 5 Spindle

• Two side box work table, t-slotted

• T-slotted base

• Flood Coolant System

• Power Arm Elevation

• Power Arm Clamp

• High Precision, Low Noise Ground Gears

• 12” + drilling depth
