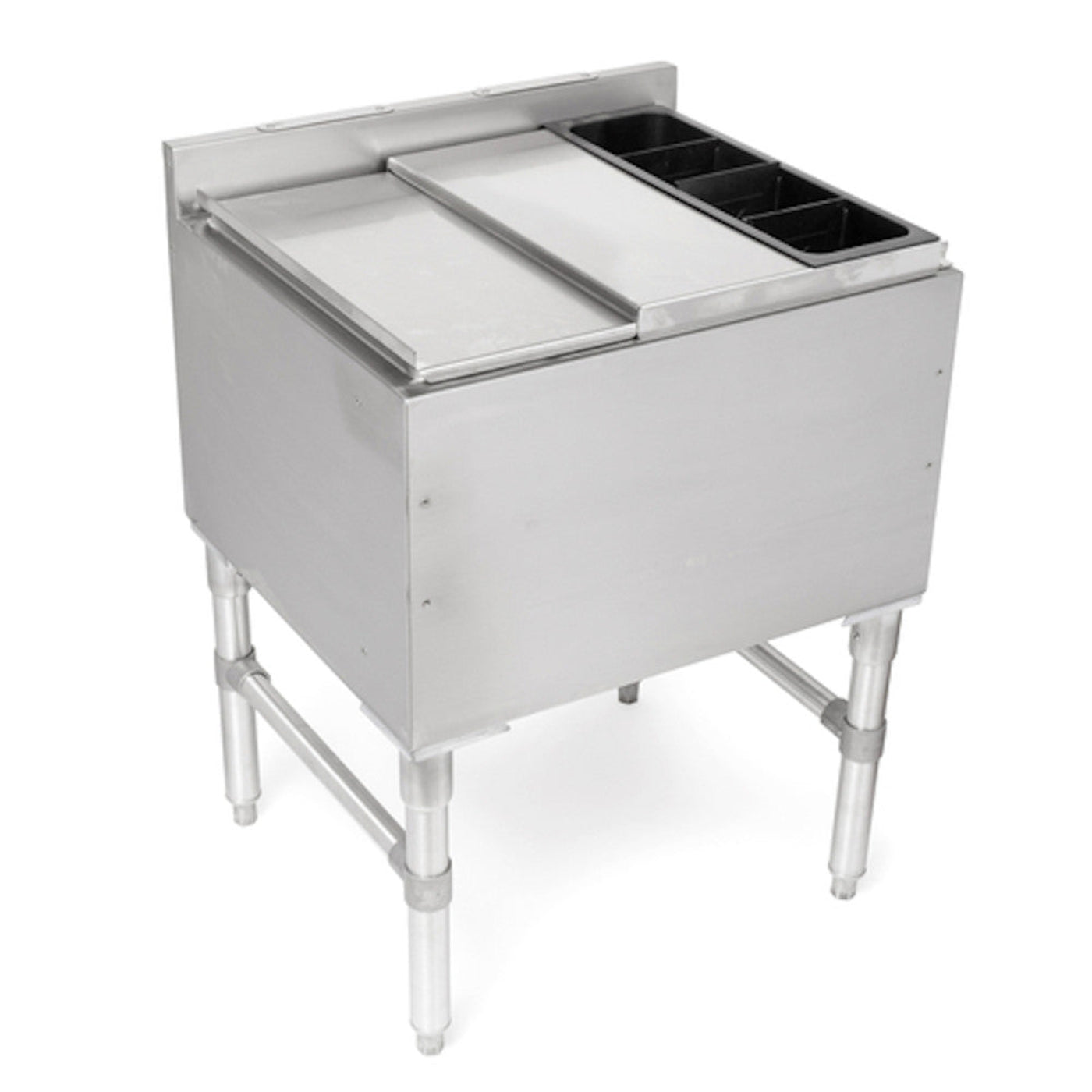

John Boos UBIB-2130 Underbar Ice Bin / Cocktail Unit - JBUBIB2130

John Boos UBIB-2130 Underbar Ice Bin / Cocktail Unit - JBUBIB2130

Entirely made of stainless steel, the John Boos UBIB-2130 underbar ice bin and cocktail unit is durable, attractive, and easy to maintain. Stainless steel improves the quality and endurance of your unit, increasing its longevity. It has a #4 polish satin finish, making your underbar station more visually appealing. It is simple to clean which improves sanitation. The UBIB-2130 is NSF certified.

Features

• ALL 18 GAUGE STAINLESS STEEL CONSTRUCTION
• TYPE 300 STAINLESS STEEL WITH #4 POLISH, SATIN FINISH
• FOAM INSULATED ICE BIN
• STANDARD THREADED INSERTS ON SIDES FOR ATTACHING ADJACENT UNITS TOGETHER
• STANDARD FRONT INSERTS FOR SPEED RAIL ATTACHMENT
• ACCESS PLATES ON TOP OF BACKSPLASH FOR SODA GUN LINES
• STAINLESS STEEL FRONT TO BACK BRACING

Materials

• TOP: 18 GAUGE TYPE 300 STAINLESS STEEL
• FRONT APRON: 18 GAUGE TYPE 300 STAINLESS STEEL
• BACKSPLASH: 18 GAUGE TYPE 300 STAINLESS STEEL
• SIDES: 18 GAUGE TYPE 300 STAINLESS STEEL
• LEGS AND BRACING
• BOLT ON 1-5/8” STAINLESS STEEL LEGS FOR FAST INSTALLATION
• 1-1/4” FRONT TO BACK BRACING
• 1” ADJUSTABLE STAINLESS STEEL BULLET FEET
• 1-7/8” DRAIN PLUG
• 1” MPT 3-1/4” LONG DRAIN CONNECTION

Specifications

What our Experts Think

• Spacious Insulated Ice Bin: The unit features a 28-inch wide, 18-inch front-to-back, and 13.5-inch deep insulated ice bin, ensuring ample storage for ice while maintaining its integrity.

• Durable Construction: Constructed from 18-gauge, type 300 stainless steel, the UBIB-2130 offers durability and corrosion resistance, making it suitable for demanding commercial environments.

• Integrated Drainage System: Equipped with a drain and a 1.875-inch drain plug, facilitating easy water management and maintenance.

• Protective Backsplash: Includes a 3-inch high backsplash to help contain spills and maintain a clean workspace.

• Sliding Lid: Comes with a two-piece sliding lid, allowing for easy access to the ice bin while keeping contents covered when not in use.

• Sturdy Support Structure: Supported by stainless steel legs and side bracing, with adjustable stainless steel bullet feet for stability on uneven surfaces.

• Optional Cold Plate: Available with a 10-circuit cold plate (model UBIB-2130-CP10) to chill beverage lines, ensuring drinks are served at optimal temperatures.

Q&A

Q: What is the John Boos UBIB-2130 Underbar Ice Bin / Cocktail Unit?
A: The John Boos UBIB-2130 is a high-quality underbar ice bin and cocktail unit designed to streamline beverage preparation in commercial bar settings.

Q: What are the dimensions of this unit?
A: The overall dimensions are 30 inches in width, 21 inches in depth, and 32.5 inches in height. The insulated ice bin itself measures 28 inches wide, 18 inches front-to-back, and 13.5 inches deep.

Q: What is the ice capacity of the UBIB-2130?
A: This unit can hold approximately 146 pounds of ice, making it suitable for high-demand environments.

Q: What materials are used in its construction?
A: Constructed from durable 18-gauge, type 300 stainless steel, the UBIB-2130 ensures longevity and resistance to corrosion. It also features stainless steel legs and side bracing for added stability

Q: Does this unit include a backsplash?
A: Yes, it comes with a 3-inch high backsplash to help maintain cleanliness and prevent spills.

Q: Are there any additional features?
A: The UBIB-2130 includes a two-piece sliding lid for easy access and an integrated drain to facilitate efficient water removal. It also has adjustable stainless steel bullet feet for leveling on uneven surfaces.

Maintenance Tips

• Dimensions: 30 inches wide, 21 inches deep, and 32.5 inches high.

• Ice Bin Capacity: The insulated ice bin measures 28 inches wide, 18 inches front-to-back, and 13.5 inches deep, accommodating approximately 146 pounds of ice.

• Construction: Made of 18-gauge, type 300 stainless steel with a satin finish, ensuring durability and corrosion resistance.

• Backsplash: Features a 3-inch high backsplash to help contain spills and maintain cleanliness.

• Lid: Includes a two-piece sliding lid for easy access and to help maintain ice temperature.

• Drainage: Equipped with a drain and a 1.875-inch drain plug for efficient water removal.

• Support Structure: Stainless steel legs with side bracing provide stability, and adjustable stainless steel bullet feet allow for leveling on uneven surfaces.

• Additional Features: Standard threaded inserts facilitate attachment to adjacent units, and front inserts allow for speed rail attachment. Access plates on top of the backsplash accommodate soda gun lines.
