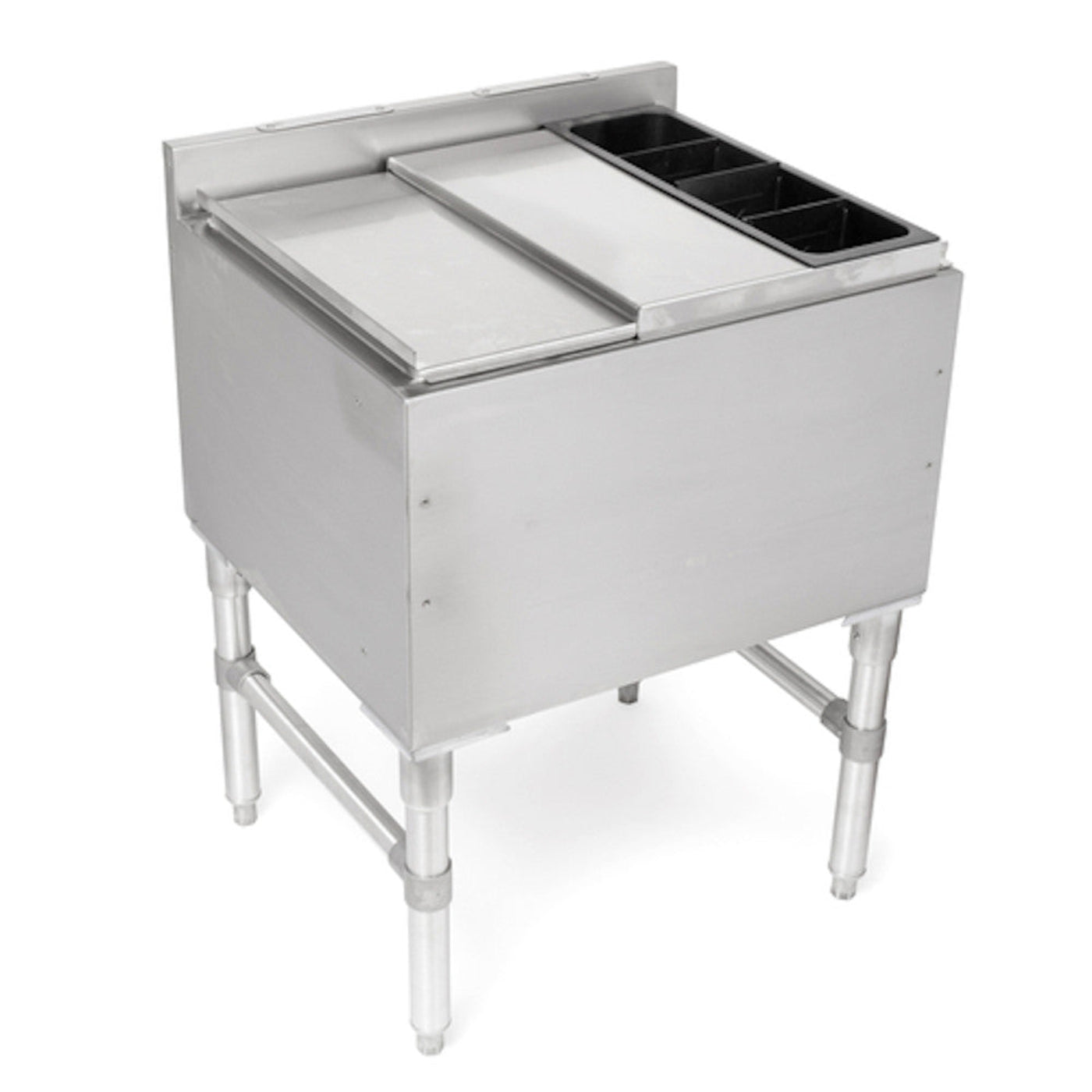

John Boos UBIB-2136 Underbar Ice Bin / Cocktail Unit - JBUBIB2136

John Boos UBIB-2136 Underbar Ice Bin / Cocktail Unit - JBUBIB2136

Entirely made of stainless steel, the John Boos UBIB-2136 underbar ice bin and cocktail unit is durable, attractive, and easy to maintain. Stainless steel improves the quality and endurance of your unit, increasing its longevity. It has a #4 polish satin finish, making your underbar station more visually appealing. It is simple to clean which improves sanitation. The UBIB-2136 is NSF certified.

Features

• ALL 18 GAUGE STAINLESS STEEL CONSTRUCTION
• TYPE 300 STAINLESS STEEL WITH #4 POLISH, SATIN FINISH
• FOAM INSULATED ICE BIN
• STANDARD THREADED INSERTS ON SIDES FOR ATTACHING ADJACENT UNITS TOGETHER
• STANDARD FRONT INSERTS FOR SPEED RAIL ATTACHMENT
• ACCESS PLATES ON TOP OF BACKSPLASH FOR SODA GUN LINES
• STAINLESS STEEL FRONT TO BACK BRACING

Materials

• TOP: 18 GAUGE TYPE 300 STAINLESS STEEL
• FRONT APRON: 18 GAUGE TYPE 300 STAINLESS STEEL
• BACKSPLASH: 18 GAUGE TYPE 300 STAINLESS STEEL
• SIDES: 18 GAUGE TYPE 300 STAINLESS STEEL
• LEGS AND BRACING
• BOLT ON 1-5/8” STAINLESS STEEL LEGS FOR FAST INSTALLATION
• 1-1/4” FRONT TO BACK BRACING
• 1” ADJUSTABLE STAINLESS STEEL BULLET FEET
• 1-7/8” DRAIN PLUG
• 1” MPT 3-1/4” LONG DRAIN CONNECTION

Specifications

What our Experts Think

• Dimensions: Measuring 36 inches in width, 21 inches in depth, and 32.5 inches in height, this unit fits seamlessly under standard bar counters.

• Ice Bin Specifications:

• Capacity: Holds up to 177 lbs of ice, ensuring ample supply during peak hours.

• Size: Features an insulated bin measuring 34" W x 18" front-to-back x 13.5" deep, equipped with a drain for easy maintenance.

• Construction: Built with durable 18-gauge type 300 stainless steel, offering a satin finish that resists corrosion and maintains a professional appearance.

Q&A

Q: What is the John Boos UBIB-2136 Underbar Ice Bin/Cocktail Unit?
A: The John Boos UBIB-2136 is a commercial-grade underbar ice bin and cocktail unit designed to efficiently store ice and facilitate cocktail preparation in bars and restaurants.

Q: What are its dimensions and ice capacity?
A: The unit measures 36 inches in width, 21 inches in depth, and 32.5 inches in height. It features an insulated ice bin with dimensions of 34" W x 18" front-to-back x 13.5" deep, capable of holding approximately 177 pounds of ice.

Q: What materials is it constructed from?
A: Constructed from 18-gauge Type 300 stainless steel with a satin finish, ensuring durability and ease of cleaning.

Maintenance Tips

• Dimensions: 36" Width x 21" Depth x 32-1/2" Height

• Ice Bin

• Insulated bin measuring 34" Width x 18" Front-to-Back x 13-1/2" Depth

• Capacity to hold approximately 177 lbs of ice

• Equipped with a drain for easy maintenance

• Construction:

• Crafted from 18-gauge Type 300 stainless steel with a satin finish for durability and ease of cleaning

• Includes stainless steel legs and side bracing

• Features adjustable stainless steel bullet feet for stable placement

• Additional Features:

• Comes with a 3" high backsplash to contain splashes

• Includes a two-piece sliding lid for convenient access and storage

• Standard threaded inserts are provided for attaching adjacent units

• Front inserts are available for speed rail attachment

• Access plates on top of the backsplash are designed for soda gun lines
