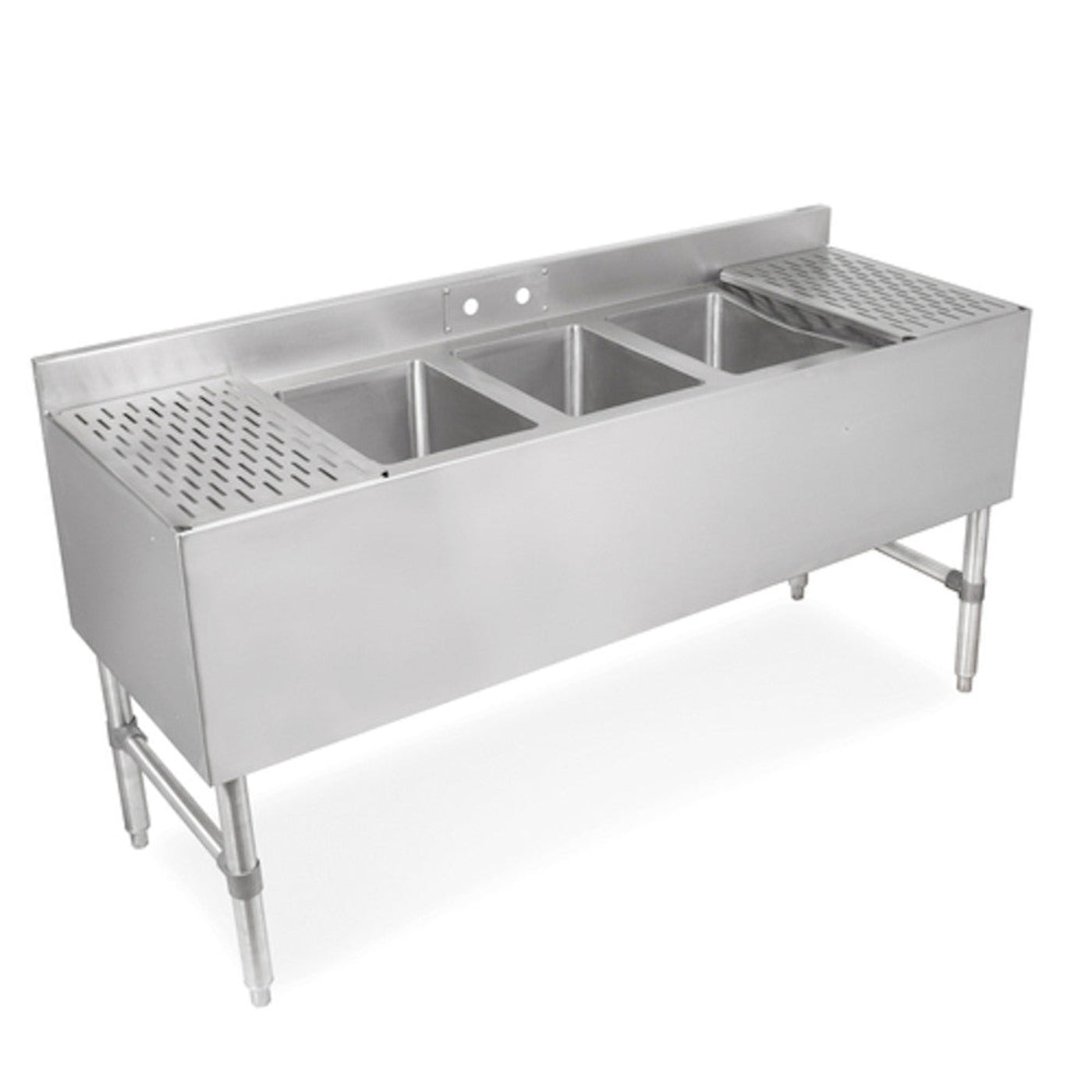

John Boos UBS3-1836 Slim-Line 3-Compartment Underbar Sink - JBUBS31836

John Boos UBS3-1836 Slim-Line 3-Compartment Underbar Sink - JBUBS31836

When you purchase the John Boos UBS3-1836, you are investing in a reliable 3-compartment sink. It has three 10” wide x 14” front-to-back x 10” deep compartments. Each has a set of removable splash mount faucet holes with 4” centers to accommodate a variety of faucet types (faucet not included). The 1-1/2” drains and overflow stand pipes keep your plumbing working reliably.

The UBS3-1836 is made of stainless steel. This 18/300 stainless steel build ensures longevity. It also makes it simple to maintain. Just wipe it clean! The 3” backsplash also improves the sanitation of surrounding areas by keeping spills and splashes confined to the sink and not on the walls. This prevents stains and potential water damage.

The underbar sink unit is NSF certified for commercial applications.

Features

• ALL 18 GAUGE STAINLESS STEEL CONSTRUCTION
• TYPE 300 STAINLESS STEEL WITH #4 POLISH, SATIN FINISH
• SLIM LINE 18” DEEP FRONT TO BACK
• STANDARD PRE-DRILLED HOLES ON SIDES FOR ATTACHING ADJACENT UNITS TOGETHER
• REMOVABLE FAUCET PLATES WITH 4” ON-CENTER SPLASH MOUNT FAUCET HOLES
• REMOVABLE PERFORATED DRAINBOARD INSERTS FOR INCREASED AIR CIRCULATION
• CREASED DRAINBOARDS FOR IMPROVED DRAINAGE
• STAINLESS STEEL 1-1/4” FRONT TO BACK BRACING
• FABRICATED SINK BOWL: 14” X 10” X 10” DEEP
• BOLT ON 1-5/8” STAINLESS STEEL LEGS FOR FAST INSTALLATION
• 1” ADJUSTABLE STAINLESS STEEL BULLET FEET
• Z-CLIP TO MOUNT TO WALL
• BOLT TO ADJACENT UNDERBAR PIECE
• 1-7/8” DRAIN WITH BASKET
• 1-1/2” NPS DRAIN CONNECTION

Specifications

What our Experts Think

• Compact Design: Measuring 36 inches in width, 18 inches in depth, and 32.5 inches in height, this underbar sink is tailored for areas with limited space.

• Three Sink Compartments: It features three compartments, each measuring 10 inches in width, 14 inches in front-to-back length, and 10 inches in depth, facilitating efficient multitasking and organization.

• Durable Construction: Crafted from 18-gauge Type 300 series stainless steel, the sink ensures longevity and resistance to corrosion, making it suitable for high-demand environments.

• Faucet Configuration: Equipped with removable splash mount faucet plates featuring 4-inch centers, allowing for easy installation of compatible faucets

• Overflow Protection: Includes 1.5-inch drains with overflow standpipes (PB-OVF-BS), enhancing safety by preventing overflows.

• Stability and Adjustability: Built with stainless steel legs and side bracing, the sink offers robust support. Adjustable stainless steel bullet feet allow for leveling on uneven surfaces.

• Splash Guard: Comes with a 3-inch high backsplash to protect surrounding areas from splashes and spills.

• Customization: Standard pre-drilled holes on the sides facilitate attachment to adjacent units, allowing for a customized setup

• Certifications: NSF certified, ensuring compliance with public health and safety standards.

Q&A

Q: What are the dimensions of the John Boos UBS3-1836 Slim-Line 3-Compartment Underbar Sink?
A: The sink measures 36 inches in width, 18 inches in depth, and 32.5 inches in height.

Q: What is the construction material of this underbar sink?
A: It is constructed from 18-gauge, type 300-series stainless steel, ensuring durability and resistance to corrosion.

Q: What are the specifications of the sink compartments?
A: The sink features three compartments, each measuring 10 inches in width, 14 inches in front-to-back length, and 10 inches in depth.

Q: Does the sink include faucet holes?
A: Yes, it comes with a set of removable splash-mount faucet holes with 4-inch centers, accommodating standard faucets.

Q: What additional features does this sink offer?
A: It includes a 3-inch high backsplash, drilled attachment holes on the sides for connecting adjacent units, removable perforated drainboard inserts, front-to-back stainless steel bracing, adjustable bullet feet, and 1.5-inch drains with overflow standpipes.

Maintenance Tips

• Regular Cleaning

• Clean the stainless steel surfaces with a mild detergent and soft cloth to remove residues and prevent staining.

• Avoid abrasive cleaners or pads that could scratch the surface.

• Drain Maintenance

• Regularly inspect and clean the drains and overflow standpipes to prevent clogs and ensure efficient drainage.

• Structural Inspection:

• Periodically check the stability of the legs and bracing, tightening any loose components as necessary

• Adjust the bullet feet to maintain a level work surface, especially if the sink is relocated.
