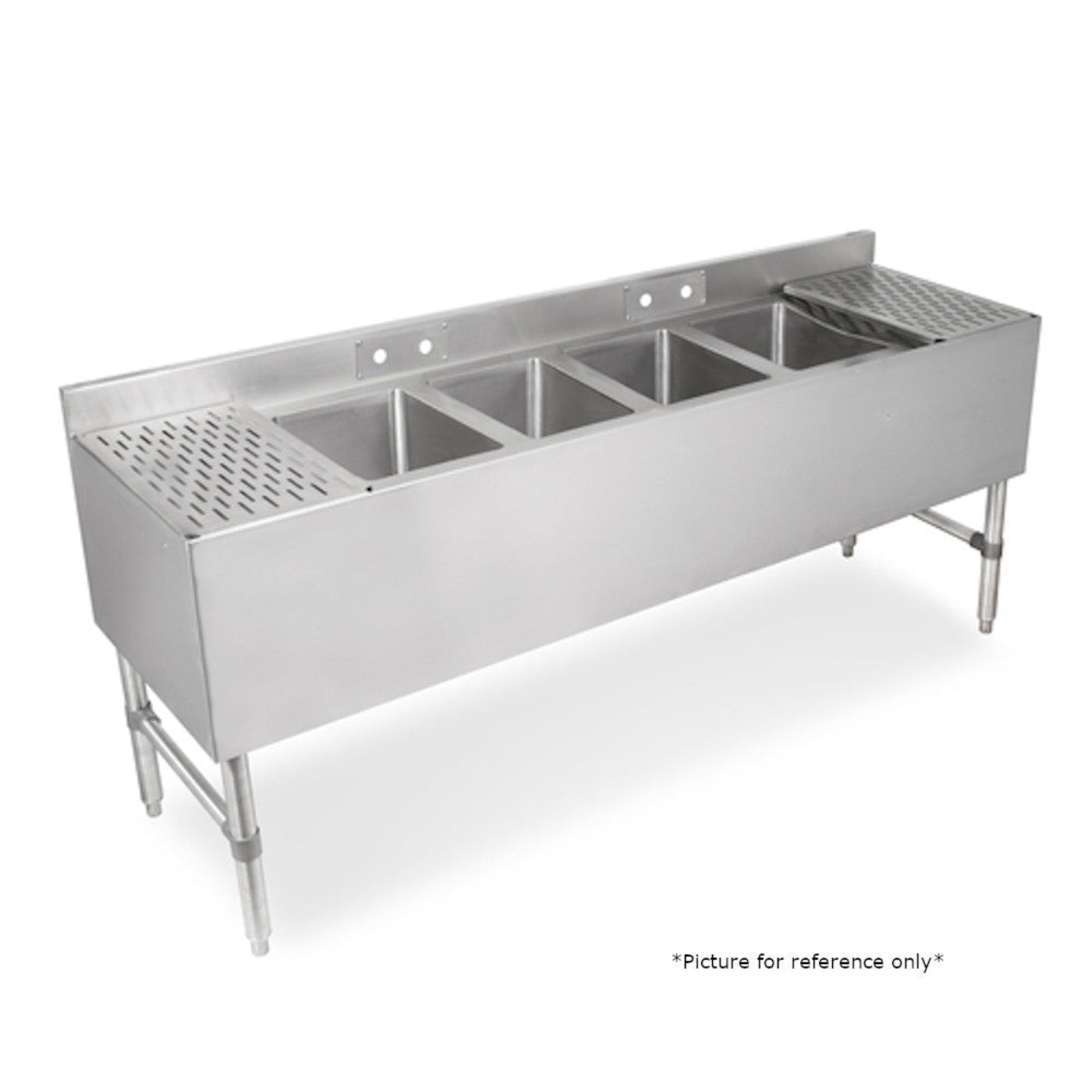

John Boos 4-Compartment Underbar Sink with 12" Drainboards - JBUBS421722D12

John Boos 4-Compartment Underbar Sink with 12" Drainboards - JBUBS421722D12

When you purchase the John Boos UBS4-2172-2D12, you are investing in a reliable compartment sink. It has four 10” wide x 14” front-to-back x 10” deep compartments. Each has a set of removable splash mount faucet holes with 4” centers to accommodate a variety of faucet types (faucet not included). The 1-1/2” drains and overflow stand pipes keep your plumbing working reliably.

The UBS4-2172-2D12 is made of stainless steel. This 18/300 stainless steel build ensures longevity. It also makes it simple to maintain. Just wipe it clean! The 3” backsplash also improves the sanitation of surrounding areas by keeping spills and splashes confined to the sink and not on the walls. This prevents stains and potential water damage.

It has 12” drainboards on both its left and right side with a removable perforated insert.

The underbar sink unit is NSF certified for commercial applications.

Features

• ALL 18 GAUGE STAINLESS STEEL CONSTRUCTION
• TYPE 300 STAINLESS STEEL WITH #4 POLISH, SATIN FINISH
• STANDARD PRE-DRILLED HOLES ON SIDES FOR ATTACHING ADJACENT UNITS TOGETHER
• REMOVABLE FAUCET PLATES WITH 4” ON-CENTER SPLASH MOUNT FAUCET HOLES
• REMOVABLE PERFORATED DRAINBOARD INSERTS FOR INCREASED AIR CIRCULATION
• CREASED DRAINBOARDS FOR IMPROVED DRAINAGE
• STAINLESS STEEL 1-1/4” FRONT TO BACK BRACING
• 3” HIGH BACKSPLASH
• (2) SETS OF SPLASH MOUNT FAUCET HOLES WITH 4” CENTERS
• 1-1/2” DRAINS & OVERFLOW STAND PIPES (PB-OVF-BS) INCLUDED
• FABRICATED SINK BOWL: (4) 10” W x 14” FRONT-TO-BACK x 10” DEEP
• BOLT ON 1-5/8” STAINLESS STEEL LEGS FOR FAST INSTALLATION
• 1” ADJUSTABLE STAINLESS STEEL BULLET FEET
• STAINLESS STEEL SIDE BRACING
• Z-CLIP TO MOUNT TO WALL
• BOLT TO ADJACENT UNDERBAR PIECE
• 1-7/8” DRAIN WITH BASKET
• 1-1/2” NPS DRAIN CONNECTION

Specifications

What our Experts Think

• Spacious Design: Measures 72 inches in width, 21 inches in depth, and 32.5 inches in height, providing ample workspace without occupying excessive floor space.

• Four Compartments: Features four sink bowls, each measuring 10 inches wide, 14 inches front-to-back, and 10 inches deep, facilitating multitasking and efficient workflow.

• Dual 12-Inch Drainboards: Equipped with 12-inch drainboards on both the left and right sides, complete with removable perforated inserts for enhanced air circulation and efficient drying.

• Durable Construction: Crafted from 18-gauge type 300 stainless steel with a satin finish, ensuring long-lasting durability and resistance to corrosion.

• Protective Backsplash: Features a 3-inch high backsplash to prevent water splashes, maintaining a clean and dry work area.

• Faucet Accommodations: Comes with removable splash mount faucet plates pre-drilled with 4-inch centers, allowing for easy installation of faucets.

• Efficient Drainage: Includes 1.5-inch drains and overflow stand pipes, facilitating quick and efficient water removal.

• Sturdy Support: Supported by stainless steel legs with side bracing and adjustable bullet feet, providing stability and accommodating uneven flooring.

Q&A

Q: What are the dimensions of the sink compartments?
A: Each of the four sink compartments measures 10 inches front-to-back, 14 inches wide, and 10 inches deep, accommodating various barware and utensils.

Q: Does this underbar sink include any backsplashes?
A: Yes, it comes with a 4-inch high backsplash to help protect walls and maintain a clean working environment.

Q: Are the legs adjustable for uneven flooring?
A: Yes, the sink is equipped with galvanized legs and adjustable plastic bullet feet, allowing for stable placement on uneven surfaces.

Q: What type of establishments would benefit from this underbar sink?
A: This sink is ideal for bars, restaurants, and other food service establishments that require a compact yet efficient washing station with additional drainboard space.

Maintenance Tips

• Daily Cleaning: Wash all sink compartments and drainboards with warm, soapy water. Rinse thoroughly and dry with a soft cloth to prevent water spots.

• Avoid Harsh Chemicals: Do not use cleaners containing chlorine, bleach, or abrasive substances, as they can damage the stainless steel finish.

• Clean Crevices and Backsplash: Use a soft brush to clean corners, crevices, and the backsplash, ensuring all debris and residues are removed.

• Sanitize Regularly: Apply a food-safe sanitizer to all surfaces to maintain hygiene standards.

• Maintain Faucets and Accessories: Inspect and clean faucets, drains, and overflow pipes to ensure they are free from blockages and function properly.

• Inspect Legs and Feet: Check the stainless steel legs and adjustable bullet feet for stability. Clean them regularly to prevent dirt buildup

• Polish Stainless Steel: Periodically apply a stainless steel polish to maintain the sink's luster and provide a protective layer against stains.

• Check for Leaks: Regularly inspect plumbing connections for any signs of leaks and address them promptly.

• Ensure Proper Drainage: Keep drainboards and sink compartments free from obstructions to allow efficient water flow.

• Follow Manufacturer's Guidelines: Refer to John Boos' care and maintenance instructions for specific recommendations.
