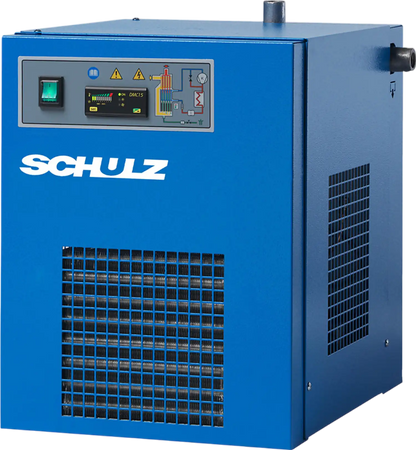

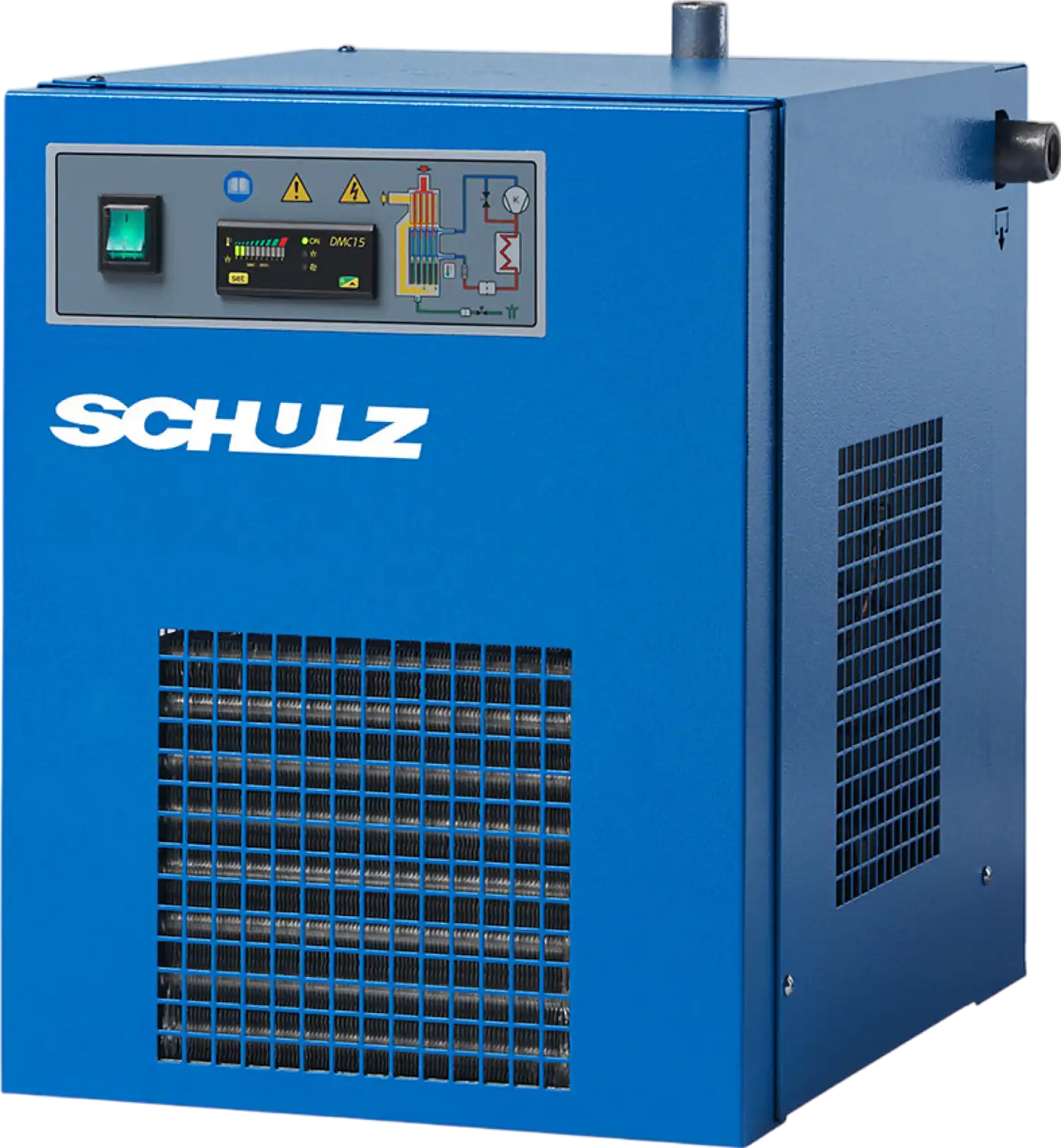

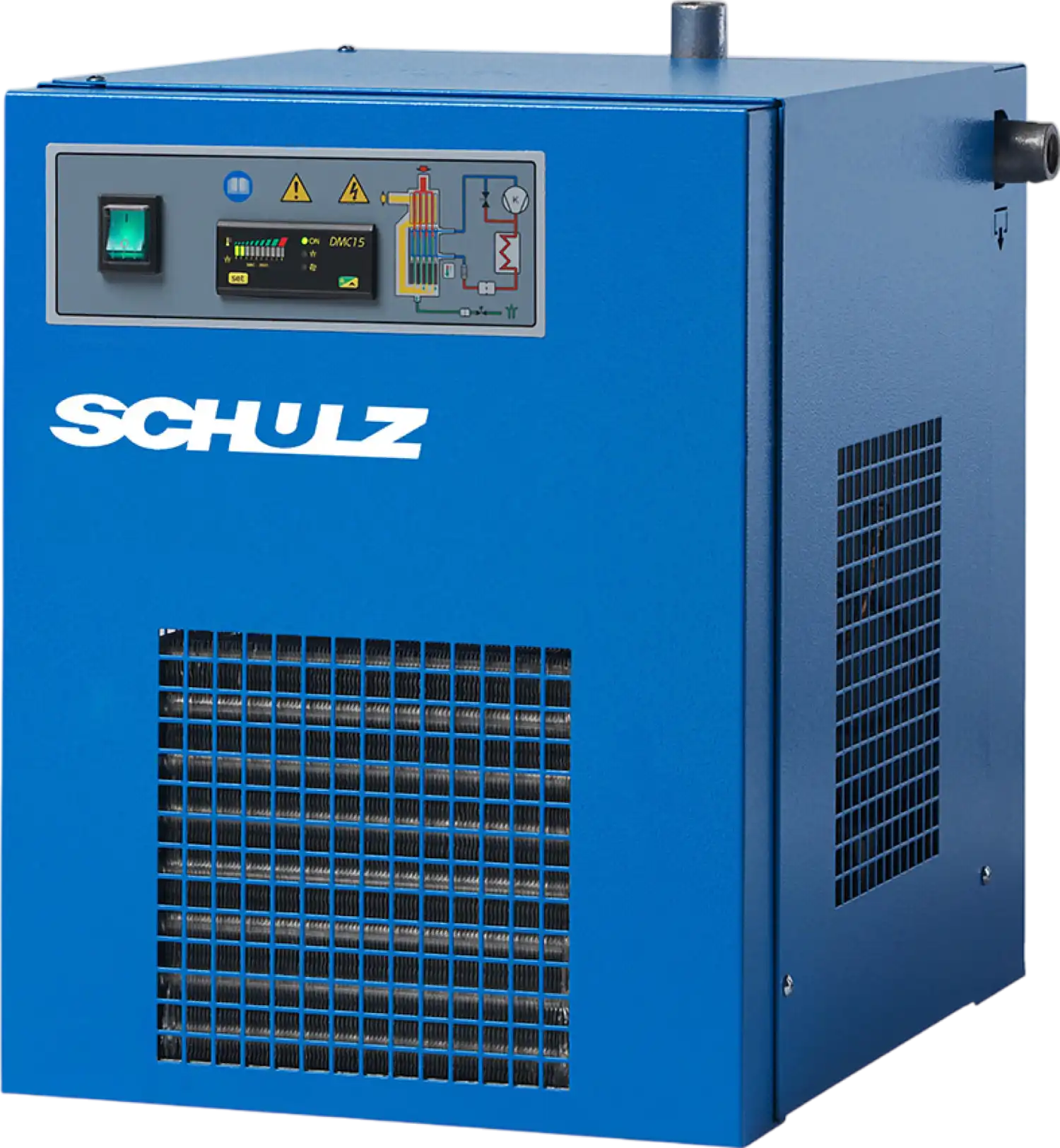

Schulz ADS-15 Refrigerated Air Dryer Non-Cycling 15 CFM 115V Single Phase New - ADS-15-UP

Schulz ADS-15 Refrigerated Air Dryer Non-Cycling 15 CFM 115V Single Phase New - ADS-15-UP

Schulz ADS air dryers are designed to deliver high-quality compressed air, ensuring your systems operate efficiently and with reduced maintenance needs. This air dryer effectively reduces moisture content to prevent corrosion, extend equipment lifespan, and lower operating costs. The dryers have excellent performance, even in situations where ambient and inlet temperatures are elevated. The panels are easily removable and allow immediate access to internal components, facilitating inspection and maintenance operations.

What our Experts Think

• Compact refrigerated moisture removal: The Schulz ADS‑15 Refrigerated Air Dryer Non‑Cycling 15 CFM 115 V Single Phase – ADS‑15‑UP delivers 15 CFM of dry air, effectively reducing water and condensate from compressed air lines — crucial for protecting pneumatic tools, paint systems, and production equipment from corrosion and wear.

• Consistent non‑cycling design: Its refrigerated non‑cycling operation provides steady dew‑point reduction without frequent on/off cycles, which helps maintain stable air quality under continuous loads and elevated ambient/inlet temperatures.

• Smart electronic control: Integrated digital display for temperature and dew point, and automatic drain/condenser fan control help simplify management and maintain efficient moisture removal with minimal intervention.

• Field‑friendly installation: Sized to match compressors up to ~15 CFM, with 115 V single‑phase power and 3/8″ NPT connections, this dryer installs easily in tight spaces — ideal for small shops or air systems.

• Easy maintenance: Removable access panels and quick‑disconnect automatic drain allow routine service without special tools, keeping downtime low.

• Robust pressure handling: Rated for up to 232 PSI maximum inlet pressure, it integrates into standard compressed‑air systems without compromise.

Q&A

Q: What is the Schulz ADS‑15 air dryer designed for?
A: It’s a non‑cycling refrigerated compressed air dryer that removes moisture from compressed air up to 15 CFM, preventing corrosion and water damage in pneumatic tools and systems.

Q: What are the electrical and connection requirements?
A: It operates on 115 V single‑phase power and uses 3/8″ NPT‑F inlet/outlet connections, suitable for small‑to‑medium compressor systems.

Q: What pressure can the ADS‑15 handle?
A: Rated for 100 PSI nominal and up to 232 PSI maximum pressure, it works well with common shop compressors.

Q: How does moisture removal work in this model?
A: The refrigerated system cools compressed air to condense moisture, then reheats and delivers dry air — with an electronic controller showing temperature and dew point and controlling the drain and condenser.

Q: What features help with operation and maintenance?
A: It includes a high‑efficiency compressor, quick‑disconnect automatic drain valve (no special tools needed), compact footprint, and removable panels for easy access.

Q: What are the size and weight?
A: The unit measures about 18″ H × 13″ W × 12″ D and weighs around 48 lbs, making installation flexible.

Q: Where should the ADS‑15 be used?
A: Ideal for workshops, garages, and industrial compressed air systems that need moisture‑free air to protect tools, extend equipment life, and improve performance.

Maintenance Tips

• Disconnect Power Before Maintenance: Always turn off and unplug the dryer before cleaning or servicing.

• Drain Moisture Regularly: Even non-cycling refrigerated dryers accumulate condensate; empty the tank and moisture traps as needed.

• Inspect Air Connections & Hoses: Ensure all fittings, hoses, and clamps are secure and free of leaks or damage.

• Clean Exterior & Cooling Fins: Remove dust and debris to maintain proper airflow and prevent overheating.

• Check Refrigerant & Pressure Settings: Verify proper operation of gauges, relief valves, and cooling system.

• Inspect Electrical Components: Ensure wiring, plugs, and switches are secure and undamaged.

• Protect From Moisture & Corrosion: Store in a dry, ventilated area; wipe exposed metal surfaces to prevent rust.
