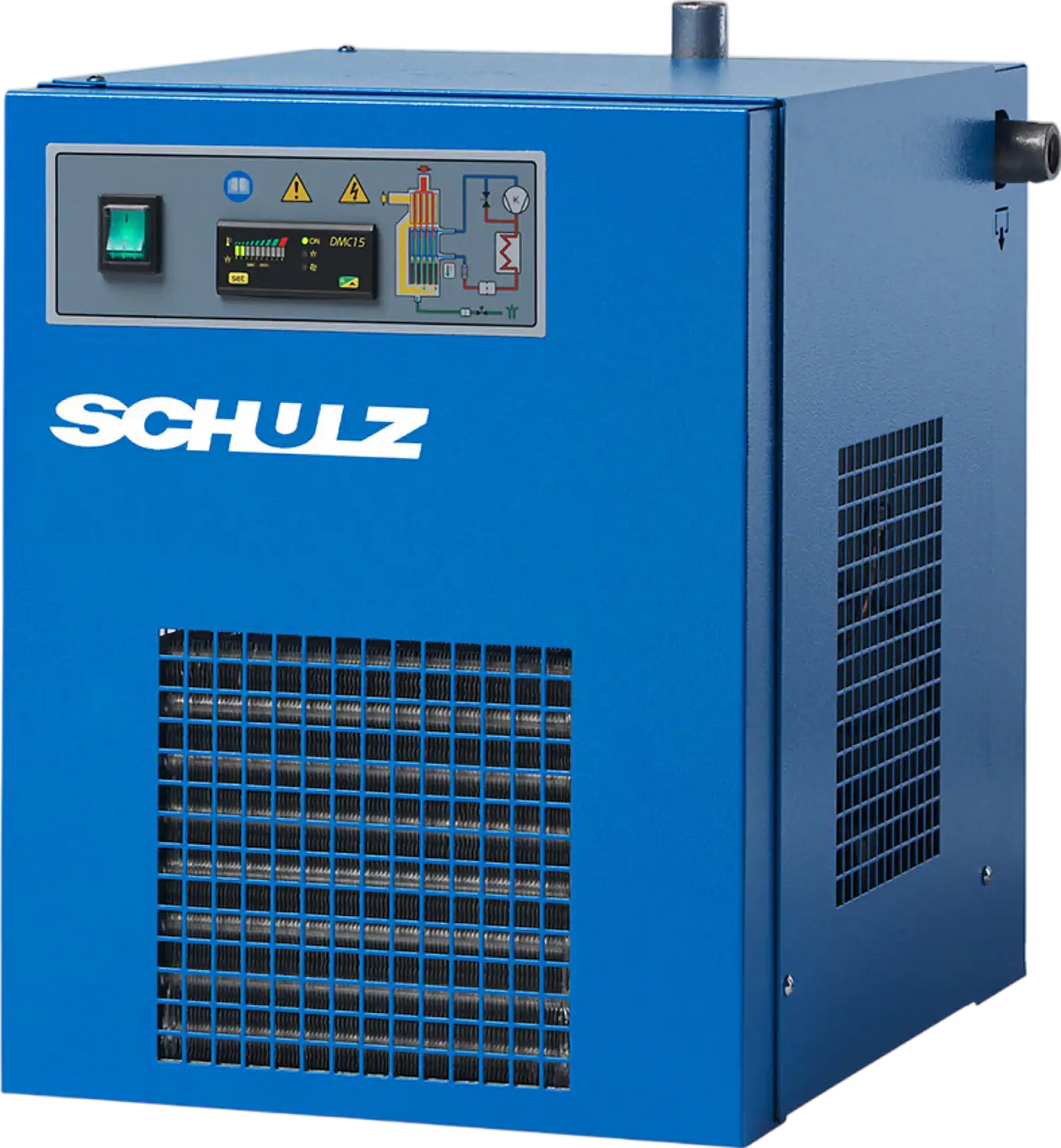

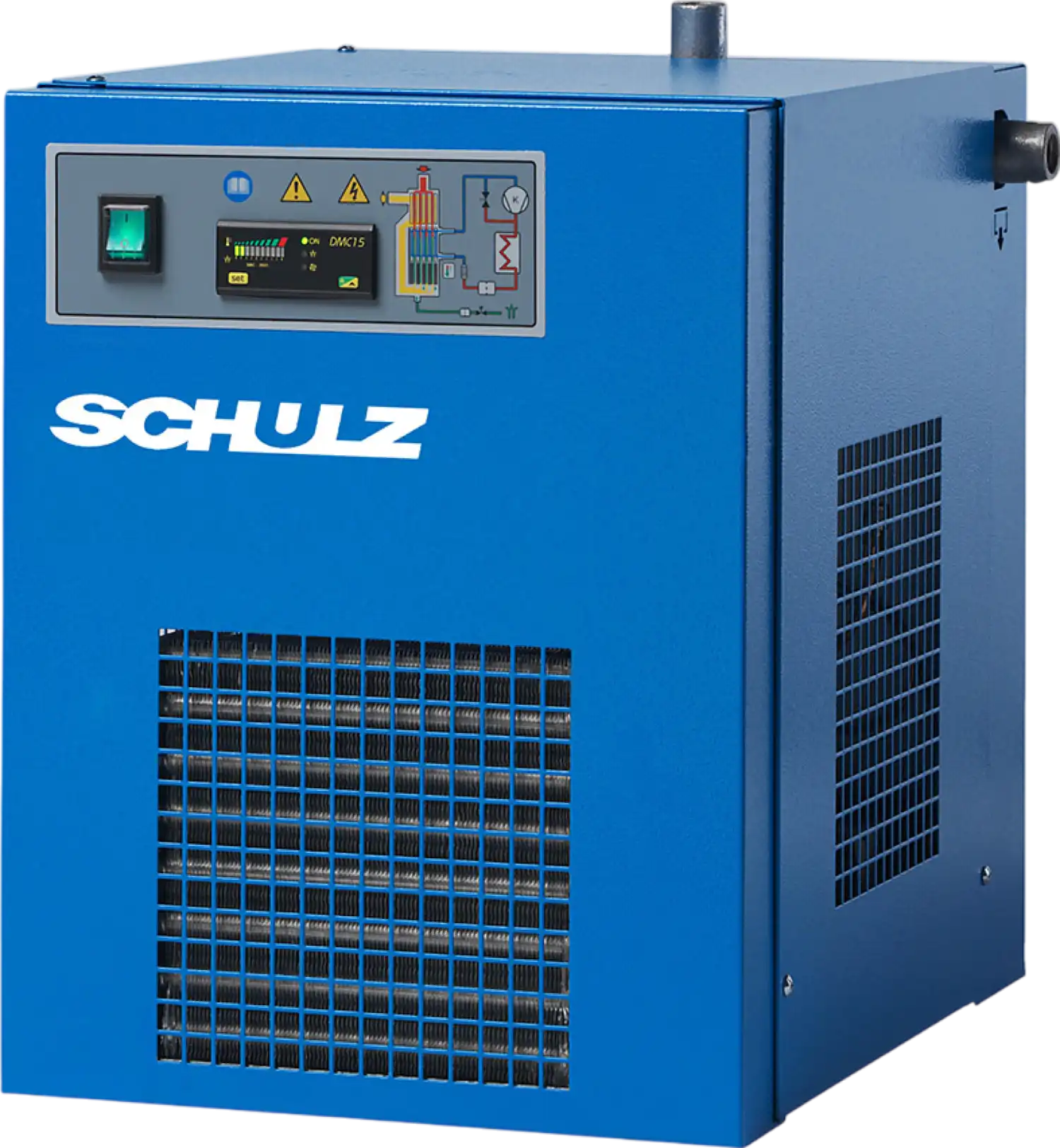

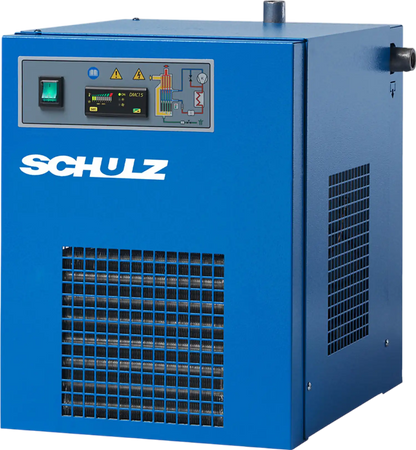

Schulz ADS-150 Refrigerated Air Dryer Non-Cycling 150 CFM 115V Single Phase New - ADS-150-UP

Schulz ADS-150 Refrigerated Air Dryer Non-Cycling 150 CFM 115V Single Phase New - ADS-150-UP

Schulz ADS air dryers are designed to deliver high-quality compressed air, ensuring your systems operate efficiently and with reduced maintenance needs. This air dryer effectively reduces moisture content to prevent corrosion, extend equipment lifespan, and lower operating costs. The dryers have excellent performance, even in situations where ambient and inlet temperatures are elevated. The panels are easily removable and allow immediate access to internal components, facilitating inspection and maintenance operations.

What our Experts Think

• High‑Capacity Moisture Protection – The Schulz ADS‑150 Refrigerated Air Dryer Non‑Cycling (ADS‑150‑UP) reliably dries up to 150 CFM of compressed air, reducing moisture and preventing corrosion in air tools, paint systems, and pneumatic equipment.

• Consistent, Continuous Drying – Its non‑cycling refrigerated design operates steadily when powered, delivering stable dew‑point control and consistent dry air without frequent compressor cycling.

• User‑Friendly Electronic Control – Integrated digital controls show temperature and dew point, and manage the automatic drain valve and condenser fan for simplified operation and reliable performance.

• Energy‑Efficient & Compact – Designed to match compressor displacement, this dryer reduces the need for oversizing, which saves energy and keeps operational costs down while maintaining a compact footprint for easy installation near your compressor.

• Durable Jobsite Build – With removable panels for quick access to internal components and environmentally friendly refrigerant (R407c), maintenance and longevity are improved.

• Wide Pressure Compatibility – Handles up to ~203 PSI max pressure and standard rated pressures (~100 PSI), making it suitable for many industrial and workshop compressed air systems.

• Expert Verdict – A robust mid‑to‑high‑capacity air dryer that delivers dependable moisture removal, energy‑efficient performance, and easy operation — excellent for workshops, automotive paint booths, and production environments where dry air quality is critical.

Q&A

Q: What is the Schulz ADS‑150‑UP?
A: It’s a non‑cycling refrigerated compressed air dryer that removes moisture from compressed air systems to protect tools, pneumatic equipment, paint systems, and machinery from corrosion and water damage.

Q: What airflow capacity does this dryer support?
A: Rated for 150 CFM, making it suitable for medium‑ to large‑capacity compressors and air systems.

Q: What power and electrical requirements does it have?
A: It runs on 115 V single‑phase power (60 Hz) and draws around 7.7 A, compatible with common workshop electrical circuits.

Q: What pressure and connection specs does it have?
A: The dryer supports a rated pressure of ~100 PSI and max of 203 PSI, with 1‑1/2″ NPT‑F inlet/outlet connections for easy integration into compressor systems.

Q: How does the non‑cycling design benefit users?
A: The non‑cycling refrigerated system runs continuously to provide consistent, moisture‑free air — ideal for applications requiring steady, reliable dryer performance.

Q: What convenient features does it include?
A: Features removable panels for easy access to internal components, an electronic controller with digital temperature/dew‑point display, automatic condensate drain, and high‑efficiency refrigerant circulation.

Q: What refrigerant does it use?
A: Uses R407C refrigerant, which is effective for cooling performance and environmentally considerate.

Q: Where is this air dryer best used?
A: Ideal for workshops, automotive shops, fabrication facilities, and industrial environments requiring dry, reliable compressed air for tools, finishes, and pneumatic systems.

Maintenance Tips

• Install & Use Pre‑Filters: Always install a minimum 1 micron pre‑filter or coalescing water separator before the dryer to remove bulk moisture and debris — required for warranty and to protect internal components.

• Clean Condenser Surfaces: Regularly wipe or blow dust from the condenser fins and ventilation openings to maintain heat rejection and moisture removal efficiency.

• Check Automatic Drain: Verify the quick‑disconnect automatic drain valve operates freely and isn’t clogged — this ensures proper condensate removal.

• Monitor Electronic Controller: Periodically check the temperature and dew point display to confirm the dryer is removing moisture as expected.

• Inspect Connections & Hoses: Look for leaks or loose fittings in air lines and tighten or replace components to prevent pressure loss and maintain performance.

• Maintain Clearance & Clean Area: Provide adequate clearance around the unit and keep the surrounding area clean — this improves airflow for the condenser and fan.

• Power Down Safely: Always turn off power and relieve compressor pressure before cleaning, servicing drains, or inspecting internal components.
