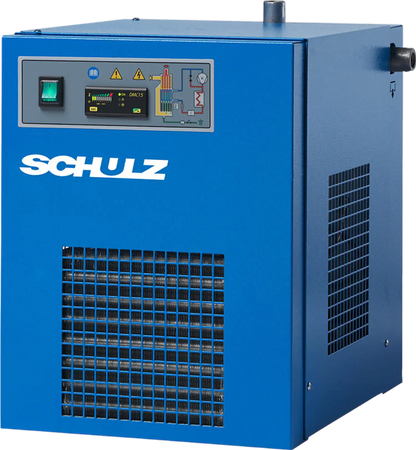

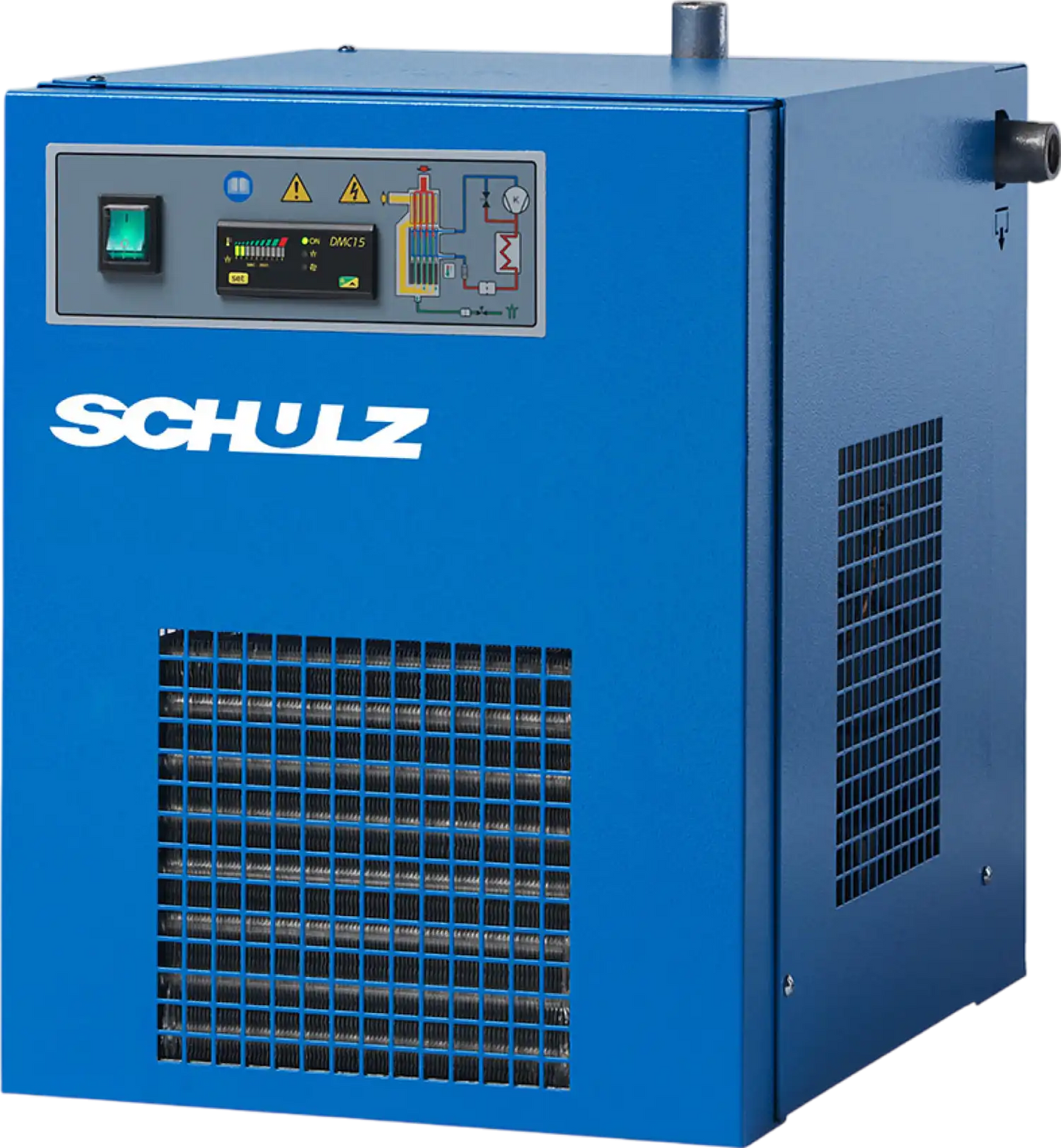

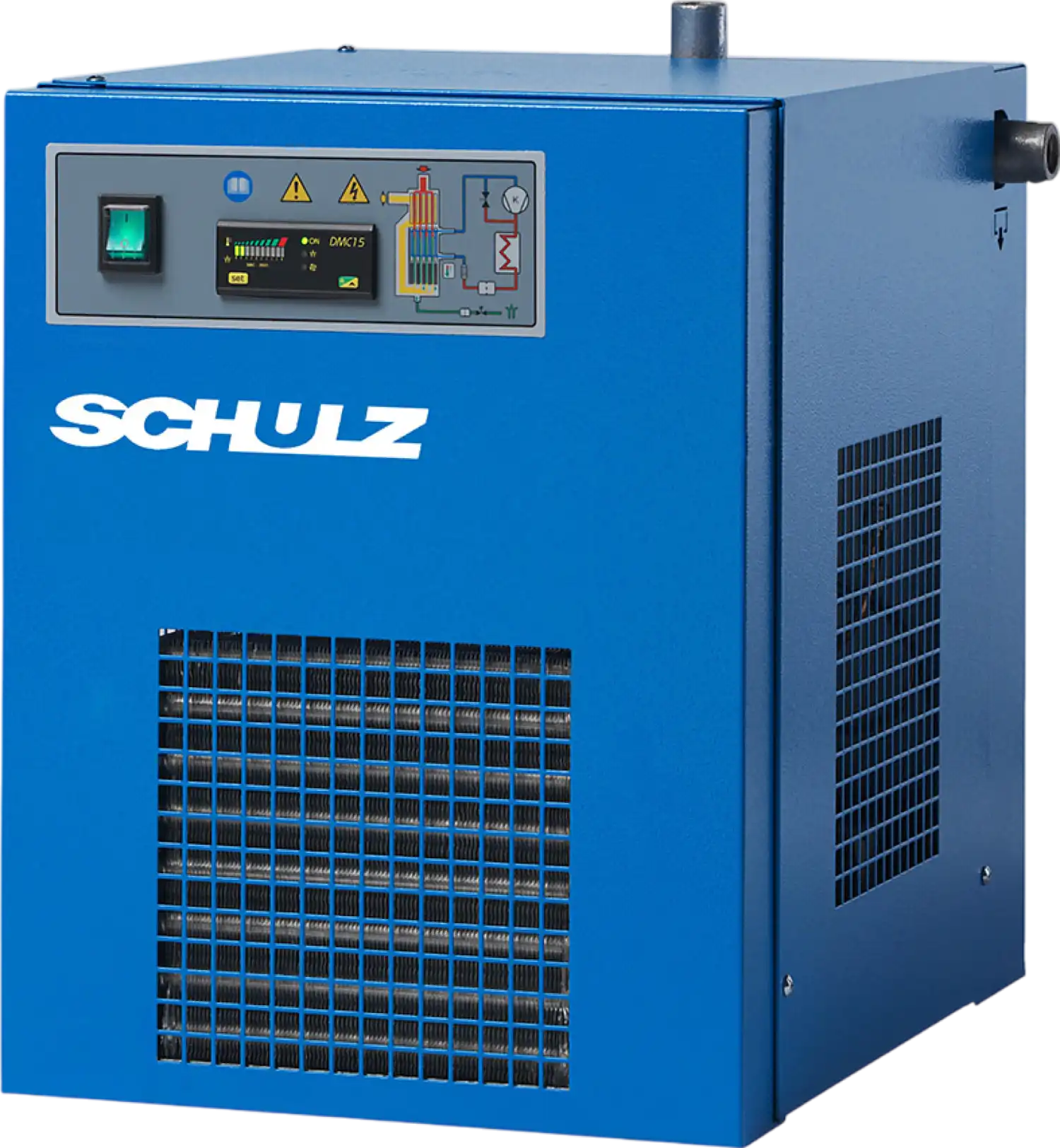

Schulz ADS-220 Refrigerated Air Dryer Non-Cycling 220 CFM 230V Single Phase New - ADS-220-UE

Schulz ADS-220 Refrigerated Air Dryer Non-Cycling 220 CFM 230V Single Phase New - ADS-220-UE

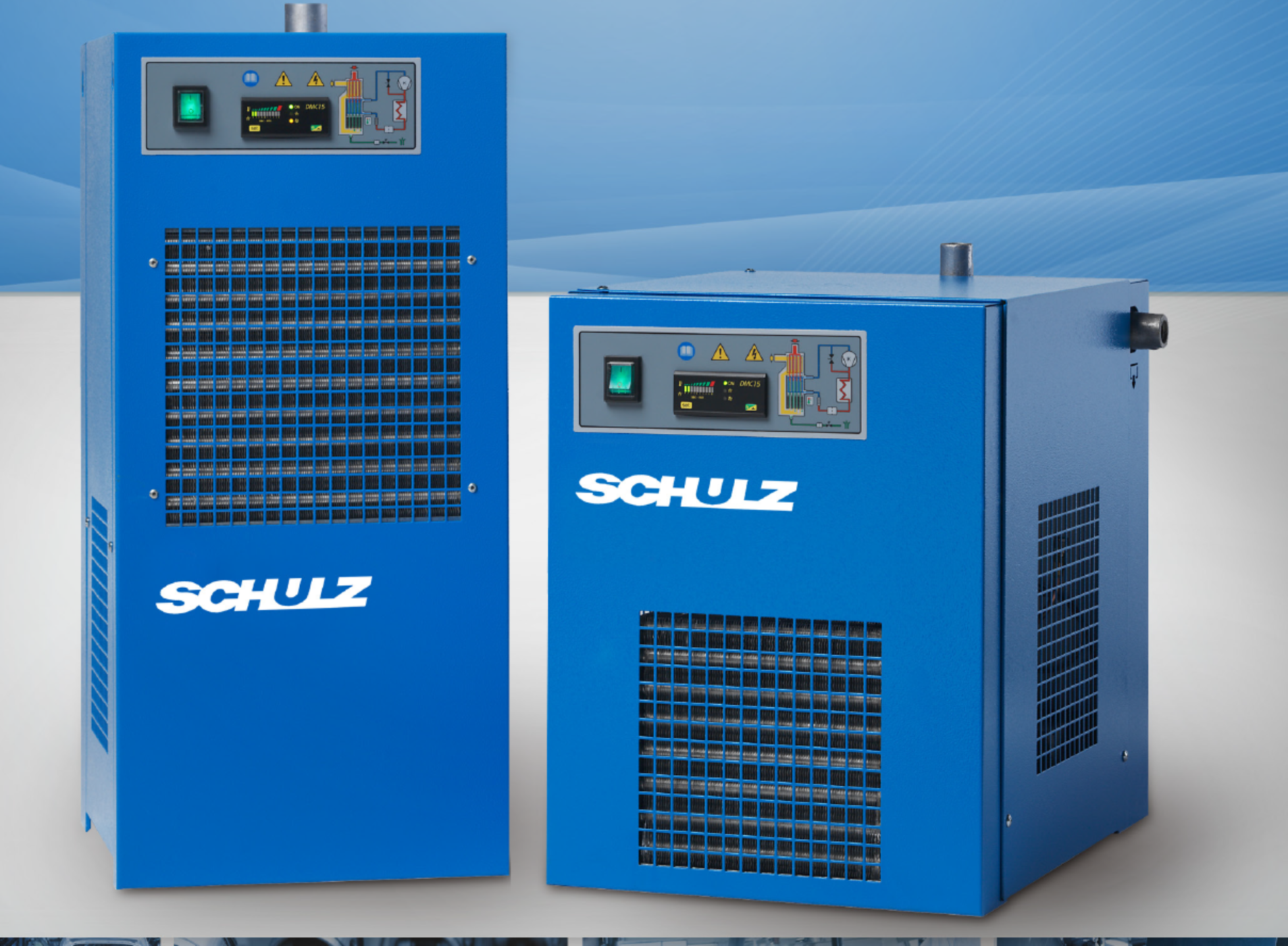

Schulz ADS air dryers are designed to deliver high-quality compressed air, ensuring your systems operate efficiently and with reduced maintenance needs. This air dryer effectively reduces moisture content to prevent corrosion, extend equipment lifespan, and lower operating costs. The dryers have excellent performance, even in situations where ambient temperatures are elevated up to 113°F. The panels are easily removable and allow immediate access to internal components, facilitating inspection and maintenance operations.

What our Experts Think

• High‑Capacity Moisture Removal – The Schulz ADS‑220 Refrigerated Air Dryer Non‑Cycling (ADS‑220‑UE) handles up to 220 CFM of compressed air, making it ideal for medium to large compressor systems where dry air is essential to protect tools and processes from moisture‑related corrosion and failure.

• Reliable Continuous Drying – Its non‑cycling refrigerated design runs steadily when powered, offering consistent dew‑point control without the on/off cycling of other dryers — perfect for systems under continuous or heavy load.

• Intelligent Electronic Control – Integrated digital controller displays temperature and dew point while automatically managing the condensate drain and condenser fan to optimize performance and ease maintenance.

• Energy‑Efficient & Compact – Sized to match compressor displacement, this dryer maximizes efficiency and reduces energy waste; its moderate footprint and accessible panels make installation and service straightforward.

• Built for Industrial Conditions – Designed to perform well even at elevated inlet and ambient temperatures, and uses environmentally friendly R407c refrigerant to balance performance with lower environmental impact.

• Workshop‑Ready Specs – Accepts compressed air up to 203 PSI maximum, with standard 1‑1/2″ NPT connections for easy integration into most shop setups.

• Expert Verdict – A robust mid‑to‑high‑capacity refrigerated air dryer that delivers stable dry air, energy savings, and ease of use — essential for pneumatic tools, paint systems, and industrial applications where moisture control improves reliability and lifespan.

Q&A

Q: What is the Schulz ADS‑220‑UE air dryer used for?
A: It’s a non‑cycling refrigerated compressed air dryer that removes moisture from compressed air, protecting tools, pneumatic systems, paint lines, and machinery from corrosion, water damage, and performance issues.

Q: What air flow capacity and power does it support?
A: Rated for 220 CFM and designed to run on 230 V single‑phase power, making it suitable for medium‑to‑large compressor setups in workshops and industrial environments.

Q: What pressure range does it handle?
A: Operates at a nominal 100 PSI with a maximum of 203 PSI, ensuring compatibility with most compressor systems.

Q: How does the non‑cycling design benefit performance?
A: The non‑cycling refrigerated system runs continuously for consistent moisture removal and stable drying performance under constant operation.

Q: What features help with maintenance and control?
A: Includes an electronic controller with digital temperature and dew‑point display, quick‑disconnect automatic drain valve, and removable panels for easier access to internal components.

Q: What refrigerant and connections are used?
A: Uses environmentally friendlier R407C refrigerant and 1‑1/2″ NPT‑F inlet/outlet connections for easy piping integration.

Q: Where is the ADS‑220 best used?
A: Ideal for workshops, fabrication facilities, automotive shops, and industrial settings where quality dry air is critical for tool life, pneumatic equipment reliability, and consistent system operation.

Maintenance Tips

• Use Proper Pre‑Filtration: Always install a 1‑micron pre‑filter or water separator before the dryer to remove bulk moisture and debris — this protects internal components and is often required for warranty coverage.

• Check Automatic Drain Function: Verify the quick‑disconnect automatic condensate drain operates freely and isn’t clogged; proper drainage prevents water carryover and protects downstream lines.

• Clean Condenser & Panels: Periodically remove dust and debris from the condenser fins, ventilation areas, and evaporator surfaces to maintain heat rejection and drying performance.

• Monitor Electronic Controller: Regularly check temperature and dew point readings on the digital controller — unusual values may indicate airflow, refrigerant, or drain issues.

• Inspect Air Lines & Fittings: Look for leaks, loose connections, or damaged hoses at inlet/outlet points; tighten or replace components to maintain pressure and efficiency.

• Maintain Adequate Clearance: Provide good airflow around the unit by keeping at least 12″ clearance from walls and other equipment — this helps maintain condenser cooling and dryer efficiency.

• Power Down Before Service: Always shut off power and relieve system air pressure before cleaning, inspecting, or servicing internal parts for safety.
