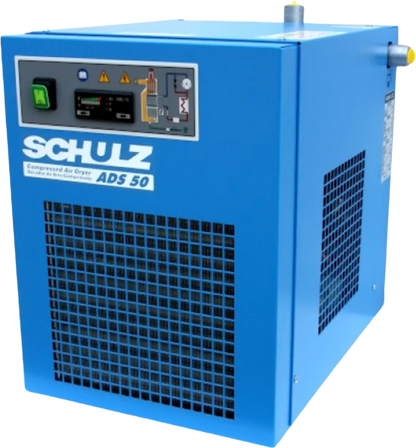

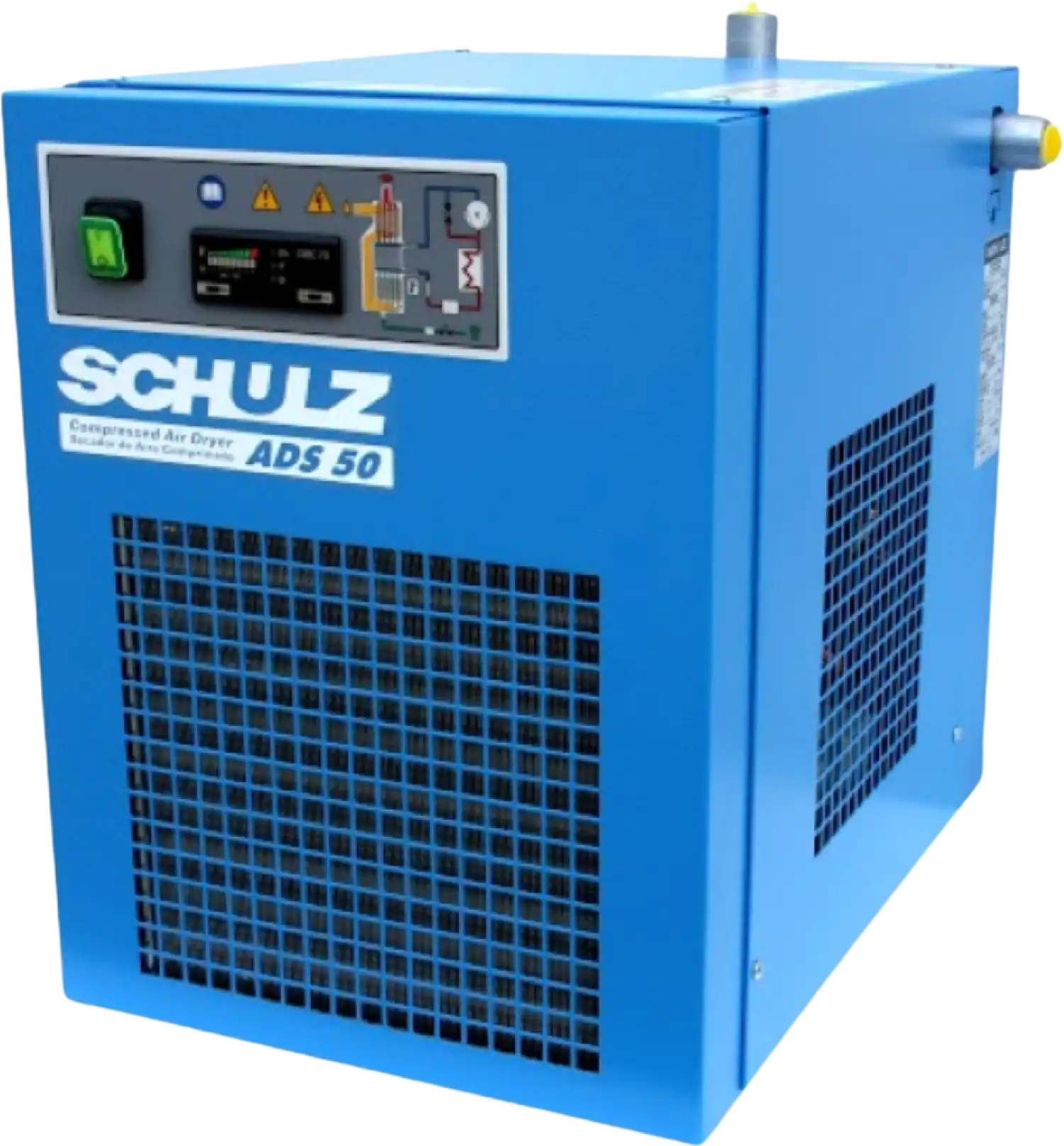

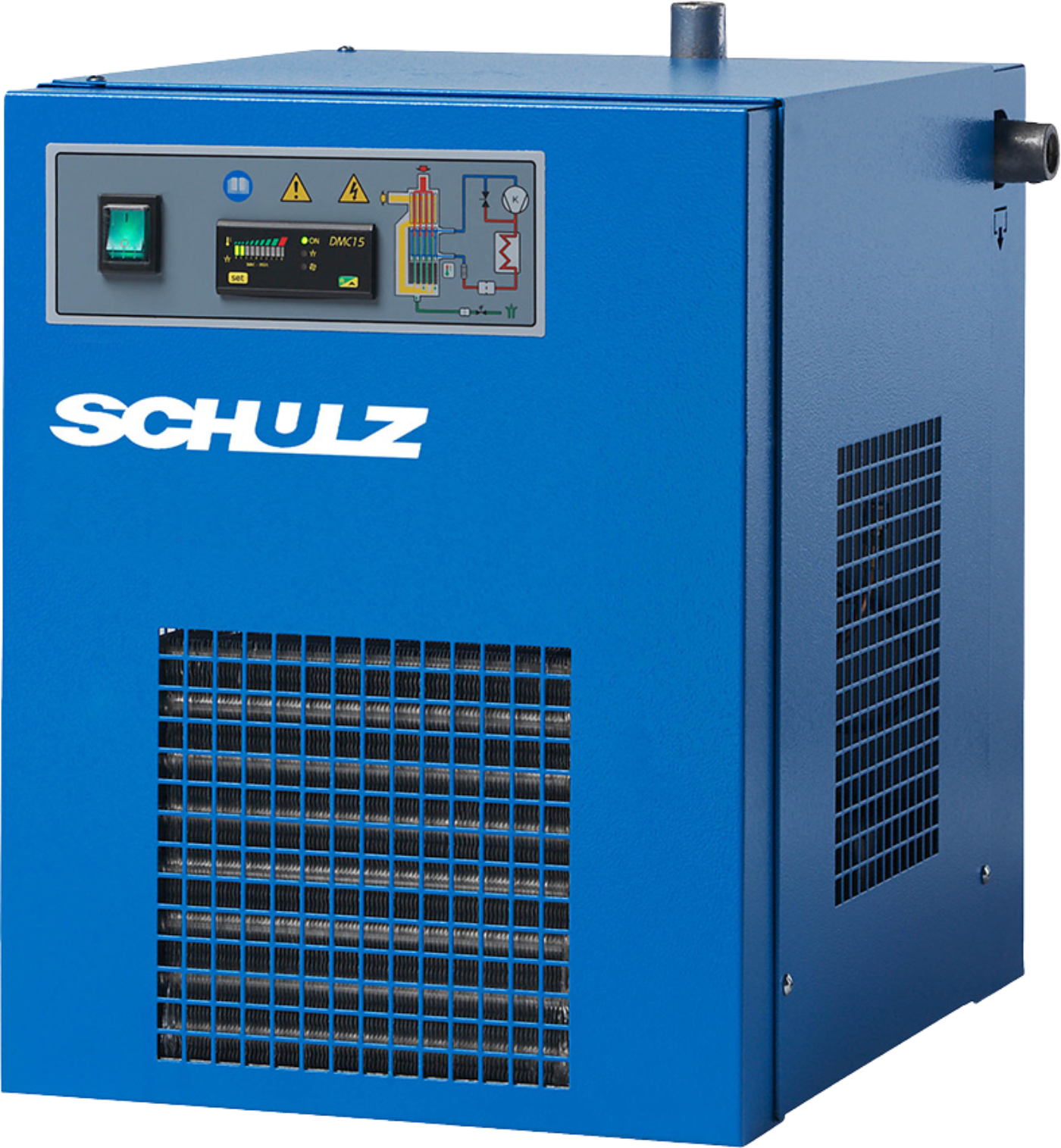

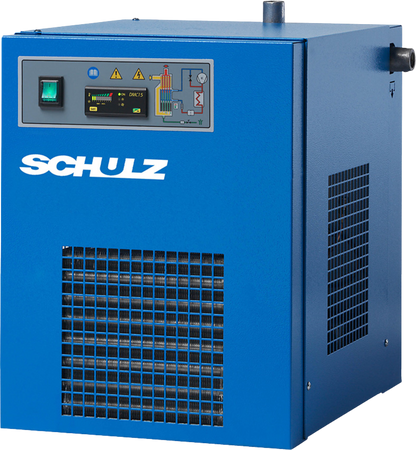

Q: What is the Schulz ADS‑50 air dryer?
A: It’s a non‑cycling refrigerated compressed air dryer designed to remove moisture from compressed air systems up to 50 CFM, protecting tools and equipment from water damage.
Q: What capacity and pressure ratings does it support?
A: This model handles a 50 CFM flow rate, with a nominal pressure of 100 PSI and a maximum pressure up to 232 PSI, making it suitable for medium‑sized compressors.
Q: What electrical requirements are needed?
A: It operates on 115 V single‑phase power at 60 Hz, drawing around 3.4 A — ideal for standard workshop electrical setups.
Q: How does the moisture removal system work?
A: The refrigerated system cools compressed air to condense and remove moisture, then reheats the dry air before delivery, reducing corrosion and protecting pneumatic tools.
Q: What features help with maintenance and operation?
A: It includes removable panels for easy access, an electronic controller for monitoring temperature/dew point and drain timing, and a quick‑disconnect automatic drain valve that simplifies upkeep.
Q: Can it handle elevated temperatures?
A: Yes — the unit performs well even with higher ambient and inlet air temperatures, providing reliable dry air output across typical workshop conditions.
Q: What are the physical and installation details?
A: The compact dryer weighs about 70 lbs with 1/2″ NPT female inlet/outlet connections; installation requires a vertical orientation and proper filtration upstream to prevent water pooling.
Q: Who should use the ADS‑50?
A: Ideal for workshops, industrial facilities, and pneumatic tool systems where consistent, dry compressed air prevents corrosion, reduces maintenance, and improves tool performance.
