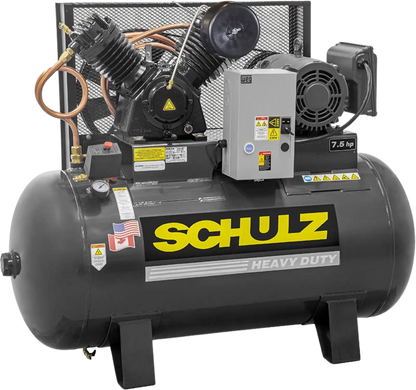

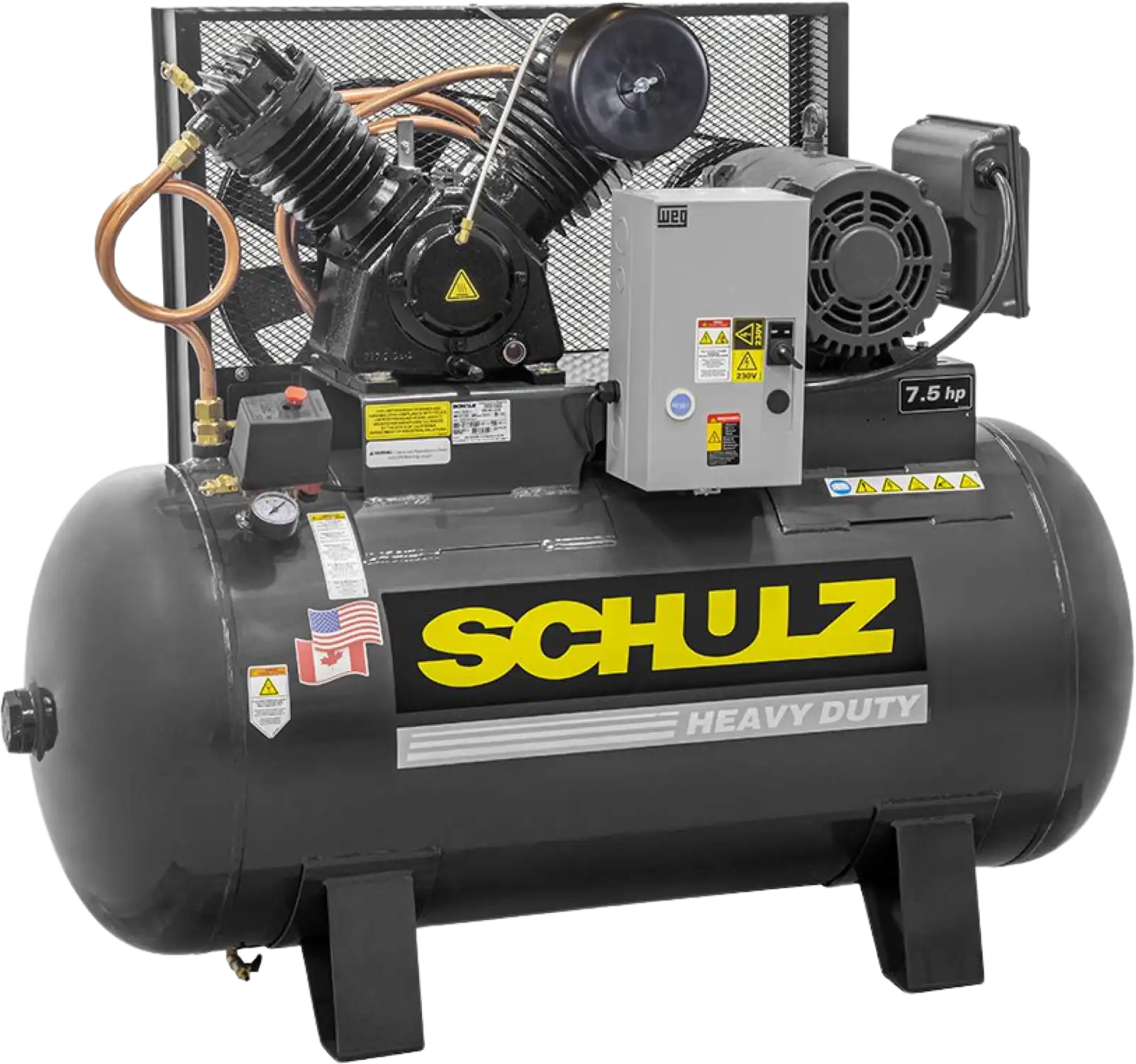

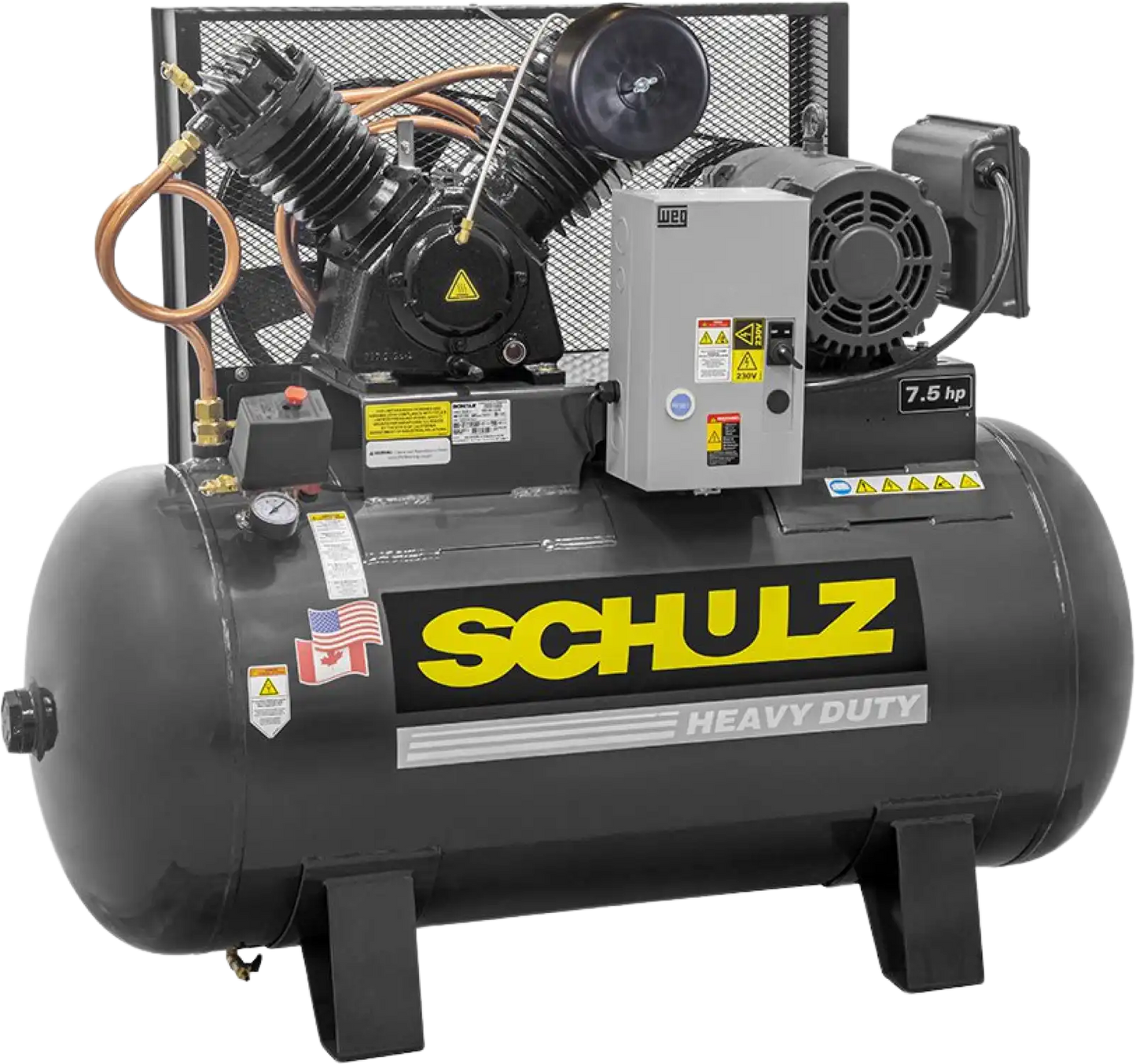

Schulz V-Series Air Compressor 7.5 HP 80 gal. 2-Stage 208-230V 3-Phase Horizontal 7580HV30X-3 New - 932.9348-0

Schulz V-Series Air Compressor 7.5 HP 80 gal. 2-Stage 208-230V 3-Phase Horizontal 7580HV30X-3 New - 932.9348-0

The V-series compressors are strong and durable equipment. With horizontal tank design, they operate in low RPMs as two stage models while using high-quality cast iron blocks. The V-cylinder design has always been associated with the product’s high cooling, generating compressed air with lower temperatures, with increased efficiency. These two stage models are built with mounted and prewired magnetic starters for safe operation and a simplified, ready to use compressor.

What our Experts Think

• Industrial‑level performance: The Schulz V‑Series Air Compressor 7.5 HP 80 gal. 2‑Stage Horizontal – 7580HV30X‑3 delivers robust, continuous compressed air with a 7.5 HP three‑phase motor and 80‑gallon horizontal ASME tank, making it well suited for demanding workshop and light industrial applications.

• Efficient two‑stage pumping: The two‑stage cast‑iron V‑style pump runs at low RPM, which improves cooling, reduces wear over time, and enhances overall efficiency compared to single‑stage designs.

• Strong airflow & pressure: Rated around 20 CFM at up to 175 PSI, this compressor supports a range of pneumatic tools—from impact wrenches and grinders to sandblasters and paint sprayers—without frequent cycling.

• Heavy‑duty construction: Solid cast‑iron components, balanced drive pulleys, oversized check valves, and powder‑coated finish contribute to durability and long service life, even in tough environments.

• Job‑ready convenience: Built‑in magnetic starter, enclosed belt guard, pressure gauge, and manual condensate drain mean simpler installation and easier maintenance.

• Horizontal tank benefits: The horizontal orientation provides stable placement and ample air reserve for intermittent heavy use, making it ideal for garages, shops, and production floors that demand consistent performance.

Q&A

Q: What type of compressor is the Schulz 7580HV30X‑3?
A: It’s a heavy‑duty 2‑stage piston air compressor with a horizontal 80 gallon ASME‑certified tank, ideal for industrial and workshop use.

Q: What power and electrical setup does it require?
A: Powered by a 7.5 HP three‑phase electric motor running on 208‑230 V (3 phase) for reliable performance on demanding applications.

Q: How much air does this compressor deliver?
A: It delivers approximately 30 CFM (cubic feet per minute) displacement with about 20.1 CFM rated @ 175 PSI, providing steady airflow for pneumatic tools and shop systems.

Q: What is the maximum pressure rating?
A: Maximum operating pressure is 175 PSI, suitable for a wide range of pneumatic equipment.

Q: What design and durability features does it include?
A: Built with solid cast‑iron pump components, low RPM V‑cylinder design for cooler operation, balanced drive pulleys, oversized check valves, magnetic starter, powder‑coated finish, and enclosed belt guard for durability.

Q: Does it include safety and convenience features?
A: Yes — it has a pressure gauge, safety relief valves, and a manual condensate drain to maintain performance and protect the system.

Q: What are the size and weight?
A: The compressor measures roughly 56″ L × 23″ W × 45″ H and weighs around 553 lbs.

Q: Who is this compressor best suited for?
A: Ideal for industrial shops, service stations, manufacturing facilities, and heavy‑duty workshops that require high‑capacity compressed air for tools and continuous operation.

Maintenance Tips

• Disconnect Power Before Maintenance: Always turn off and lock out power before servicing.

• Drain Tank Daily: Release accumulated moisture from the tank to prevent rust and maintain air quality.

• Check Oil Levels: Maintain proper oil in both stages; change oil according to manufacturer schedule.

• Clean or Replace Air Filters: Ensure intake filters are clean to prevent debris from entering the pump.

• Inspect Belts & Couplings: Check belt tension and condition; replace frayed or worn belts.

• Test Safety & Pressure Relief Valves: Verify valves operate correctly to prevent overpressure hazards.

• Inspect Hoses & Fittings: Check for leaks, cracks, or loose connections in hoses and fittings.

• Clean Cooling Surfaces: Remove dust from motor, pump fins, and fans to prevent overheating.

• Check Electrical Components: Ensure wiring, breakers, and terminals are secure and undamaged.
