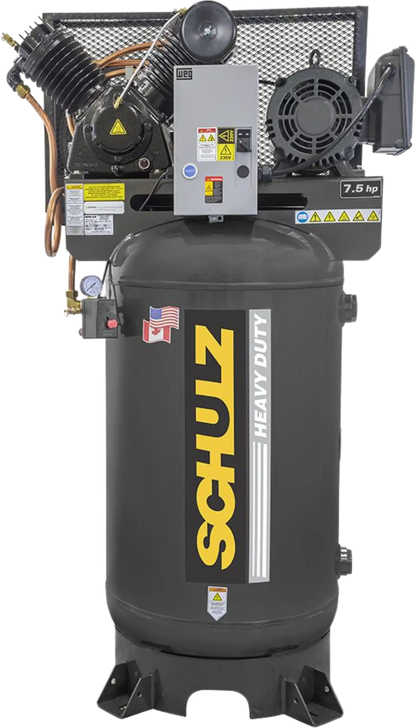

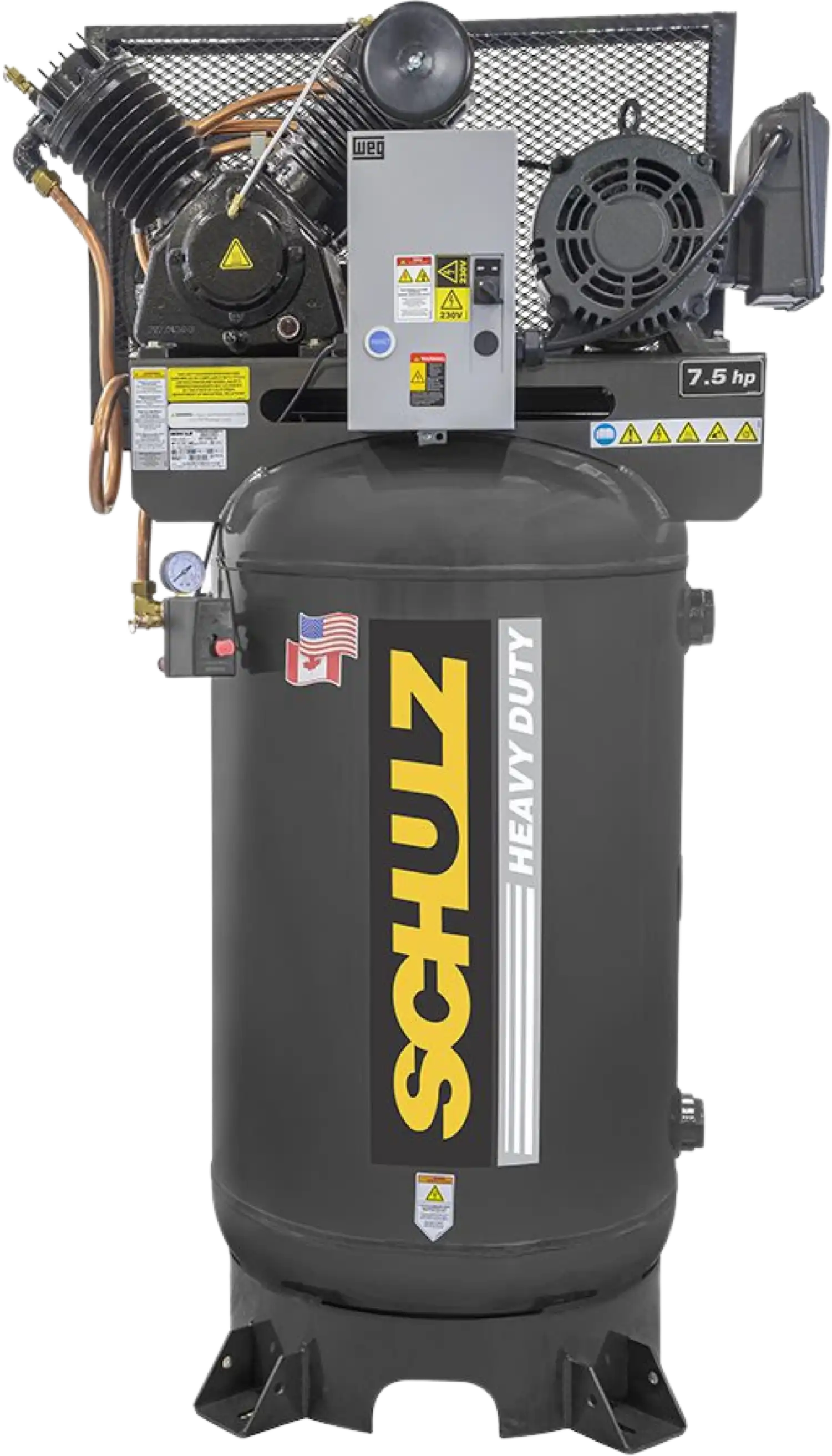

Schulz V-Series Air Compressor 7.5 HP 80 gal. 2-Stage 208-230V 3-Phase Vertical 7580VV30X-3 New - 932.9342-0

Schulz V-Series Air Compressor 7.5 HP 80 gal. 2-Stage 208-230V 3-Phase Vertical 7580VV30X-3 New - 932.9342-0

The V-series compressors are strong and durable equipment. With vertical tank design, they operate in low RPMs as two stage models while using high-quality cast iron blocks. The V-cylinder design has always been associated with the product’s high cooling, generating compressed air with lower temperatures, with increased efficiency. These two stage models are built with mounted and prewired magnetic starters for safe operation and a simplified, ready to use compressor.

What our Experts Think

• Industrial‑strength compressed air delivery: The Schulz V‑Series Air Compressor 7.5 HP 80 gal. 2‑Stage 208‑230 V 3‑Phase Vertical 7580VV30X‑3 provides robust, continuous airflow (~20.1 CFM @ 175 PSI) to support pneumatic tools, sandblasters, paint systems, and industrial controls — ideal for busy shops and light industrial use.

• Efficient two‑stage pump design: The two‑stage cast‑iron pump runs at low RPM for cooler operation, better compression efficiency, and longer service life compared to single‑stage units — great for demanding duty cycles.

• Vertical space‑saving footprint: A vertical 80‑gallon ASME‑certified tank stores ample air while minimizing floor space, which helps maintain shop layout flexibility in tight or crowded environments.

• User‑friendly, job‑ready features: Mounted magnetic starter, automatic start/stop pressure switch, balanced drive pulleys, oversized check valves, and a manual condensate drain mean simplified installation and smooth day‑to‑day operation.

• Durable, maintenance‑focused construction: Heavy‑duty cast‑iron pump, powder‑coated ASME receiver, enclosed belt guard, and large intake filters enhance reliability and resistance to corrosion or wear on the job.

• ASME safety & certified design: Built with ASME safety relief valves and compliant components, offering peace of mind and safe performance in commercial use cases

Q&A

Q: What kind of compressor is the Schulz 7580VV30X‑3?
A: It’s a heavy‑duty, two‑stage vertical stationary air compressor with an 80 gallon ASME‑certified tank and 7.5 HP, 3‑phase motor, ideal for industrial and workshop pneumatic power needs.

Q: What airflow and pressure performance does it deliver?
A: The unit produces around 20.1 CFM at 175 PSI maximum pressure, offering reliable flow for multiple tools, air lines, spray guns, and heavier pneumatic applications.

Q: What are its construction and durability features?
A: Built with a solid cast‑iron two‑stage pump, balanced drive pulleys, oversized check valves, and a powder‑coated ASME receiver tank, it’s engineered for long‑term use.

Q: What safety and usability features are included?
A: It includes mounted and prewired magnetic starter, pressure switch auto start/stop, ASME safety relief valves, manual condensate drain, and a belt guard for safe, convenient operation.

Q: What are its electrical requirements?
A: Designed for 208–230 V, three‑phase power, making it suitable for commercial and industrial electrical systems.

Q: What are the physical specs?
A: The compressor weighs around 565 lbs, stands about 74.8″ tall, with a compact vertical footprint that saves floor space.

Q: Who is this compressor best for?
A: Ideal for industrial facilities, automotive shops, manufacturing, and busy workshops needing consistent, powerful compressed air for demanding pneumatic tools and continuous operation

Maintenance Tips

• Disconnect Power Before Maintenance: Always turn off and lock out power before servicing.

• Drain Tank Daily: Release accumulated moisture to prevent rust and maintain air quality.

• Check Oil Levels: Maintain proper oil in both stages; replace per manufacturer schedule.

• Clean or Replace Air Filters: Keep intake filters clean to prevent debris from entering the pump.

• Inspect Belts & Couplings: Check tension and condition; replace worn or frayed belts.

• Test Safety & Pressure Relief Valves: Ensure proper function to prevent overpressure.

• Inspect Hoses & Fittings: Check for leaks, cracks, or loose connections.

• Clean Cooling Surfaces: Remove dust from motor, pump fins, and fan to prevent overheating.

• Check Electrical Components: Confirm wiring, breakers, and terminals are secure and undamaged.
